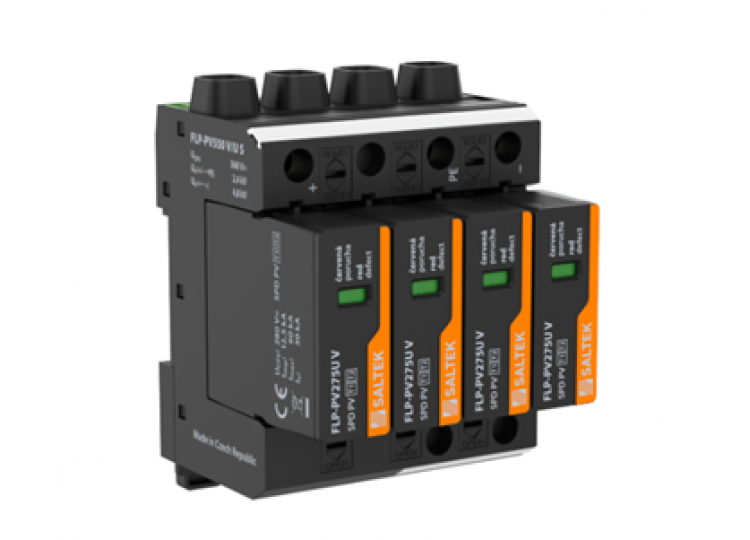

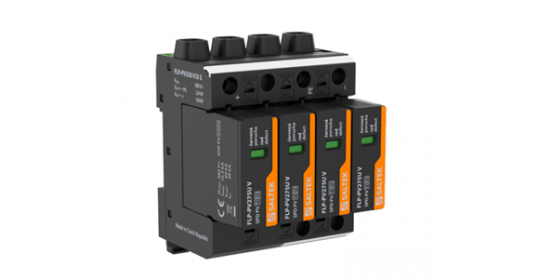

Type of SPD

PV T1, PV T2

Mounting

DIN rail 35 mm

Maximum operating voltage mode +/PE, -/PE

U_CPV

560.00 V DC

Short-circuit current rating

I_SCPV

10 000 A DC

Residual current mode +/PE, -/PE

I_PE

0.500 mA AC

Residual current mode +/PE, -/PE

I_PE

0.010 mA DC

Total discharge current (10/350 µs)

I_{Total(10/350)}

25.00 kA

Lightning impulse current (10/350 µs)

I_imp

12.50 kA

Total discharge current (8/20 µs)

I_Total(8/20)

120.00 kA

Nominal discharge current (8/20 µs)

I_n

30.00 kA

Maximum discharge current (8/20 µs)

I_max

60.00 kA

Voltage protection level mode +/-

U_p

4.80 kV

Voltage protection level mode +/PE, -/PE

U_p

2.40 kV

Response time

t_a

25 ns

Cross-section of connected conductors solid (min)

1.00 mm²

Cross-section of connected conductors solid (max)

35.00 mm²

Cross-section of connected conductors stranded (min)

1.00 mm²

Cross-section of connected conductors stranded (max)

25.00 mm²

Cross-section of remote indication conductors solid (max)

1.5 mm²

Cross-section of remote indication conductors stranded (max)

1.5 mm²

Fault indication

red indication field

Remote indication

potential-free change-over contact

Remote indication contacts

250V/0,5A AC,250V/0,1A DC

Degree of protection

IP 20

Range of ambient temperatures (min/max)

-40 / 80 °C

According to standard

EN 61643-31, IEC 61643-31

ETIM Class

EC001457

Plug module

FLP-PV275U V/0

Customs tariff number

85363090

EAN

8595090561460
