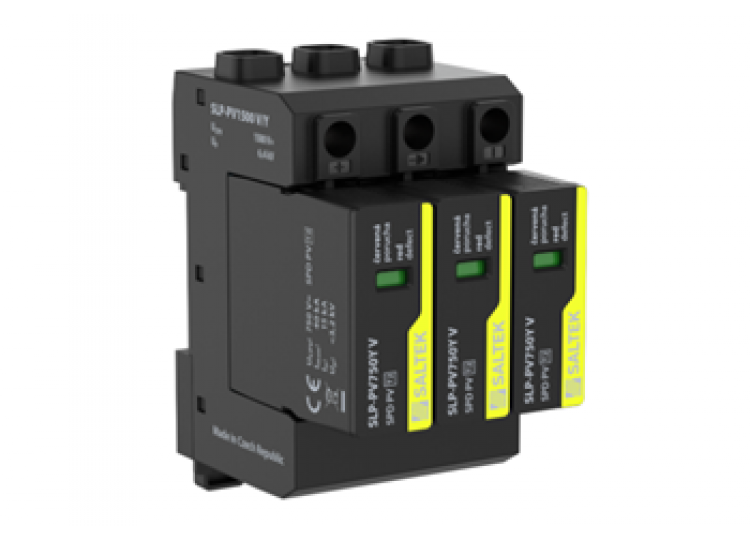

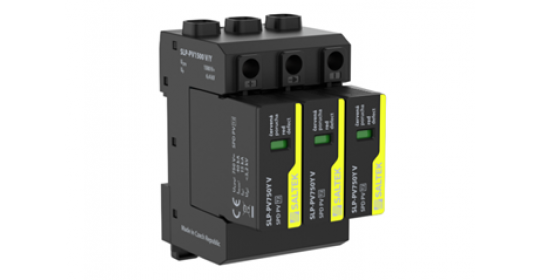

SALTEK - SLP-PV1500 V/Y - SPD - for DC and PV

Pluggable module, visual fault signalling, module locking.

Varistor surge arrester in 'Y' connection.
For protection of PV systems where the separating spark-over distance is kept or without LPS.
Maximum continuous operating voltage for PV application: UCPV ≥ 1.2x UOC STC.

Specifications:

Parameter name		Parameter value
Type of SPD		PV T2
Mounting		DIN rail 35 mm
Maximum operating voltage mode +/PE, -/PE	U_CPV	1 500.00 V DC
Short-circuit current rating	I_SCPV	10 000 A DC
Residual current mode +/PE, -/PE	I_PE	0.250 mA AC
Residual current mode +/PE, -/PE	I_PE	0.005 mA DC
Total discharge current (8/20 µs)	I_Total(8/20)	40.00 kA
Nominal discharge current (8/20 µs)	I_n	15.00 kA
Maximum discharge current (8/20 µs)	I_max	40.00 kA
Voltage protection level mode +/-	U_p	6.40 kV
Voltage protection level mode +/PE, -/PE	U_p	6.40 kV
Response time	t_a	25 ns
Cross-section of connected conductors solid (min)		1.00 mm²
Cross-section of connected conductors solid (max)		35.00 mm²
Cross-section of connected conductors stranded (min)		1.00 mm²
Cross-section of connected conductors stranded (max)		25.00 mm²
Fault indication		red indication field
Degree of protection		IP 20
Range of ambient temperatures (min/max)		-40 / 80 °C
According to standard		EN 61643-31, IEC 61643-31
ETIM Class		EC000941
Customs tariff number		85354000
EAN		8595090543046
