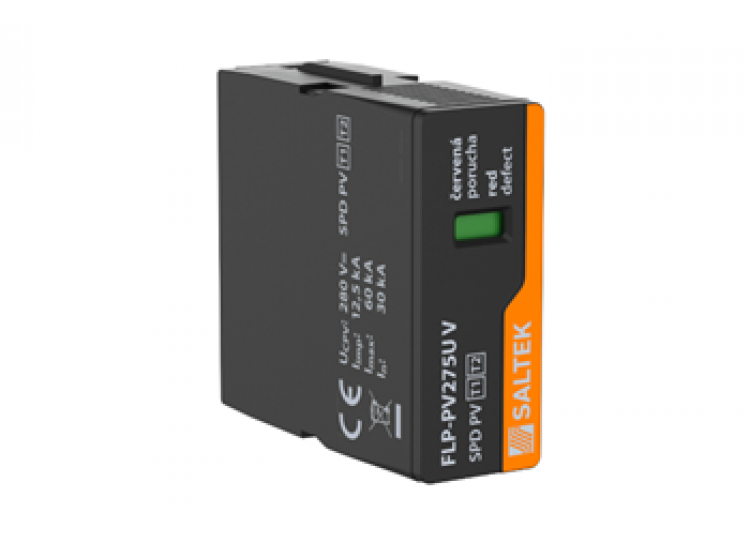

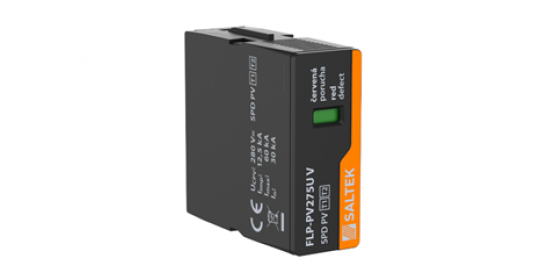

- Replacement module for FLP-PV275 V/U and FLP-PV550 V/U.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Maximum operating voltage |
Uc |
280.00
V DC |
|
Lightning impulse current (10/350
µs) |
Iimp |
12.50
kA |
|
Nominal discharge current (8/20 µs) |
In |
30.00
kA |
|
Maximum discharge current (8/20 µs) |
Imax |
60.00
kA |
|
Response time |
ta |
25
ns |
|
Fault indication |
red
indication field |
|
|
ETIM Class |
EC000941 |
|
|
Customs tariff number |
85363090 |
|
|
EAN |
8595090561477 |
Dimensions:
Replacement module for FLP-PV275 V/U and FLP-PV550 V/U
