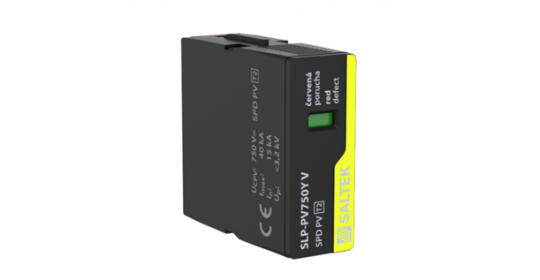

- Replacement module for SLP-PV1500 V/Y
Specifications:
|
Parameter name |
Parameter
value |
|
|
Maximum operating voltage |
Uc |
750.00
V DC |
|
Nominal discharge current (8/20 µs) |
In |
15.00
kA |
|
Maximum discharge current (8/20 µs) |
Imax |
40.00
kA |
|
Response time |
ta |
25
ns |
|
Fault indication |
red
indication field |
|
|
ETIM Class |
EC000941 |
|
|
Customs tariff number |
85363030 |
|
|
EAN |
8595090543084 |
Dimensions:
Datasheet:
Replacement module for SLP-PV1500 V/Y
