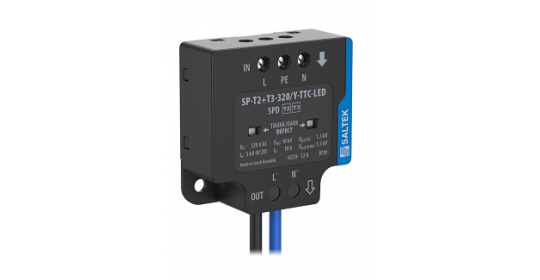

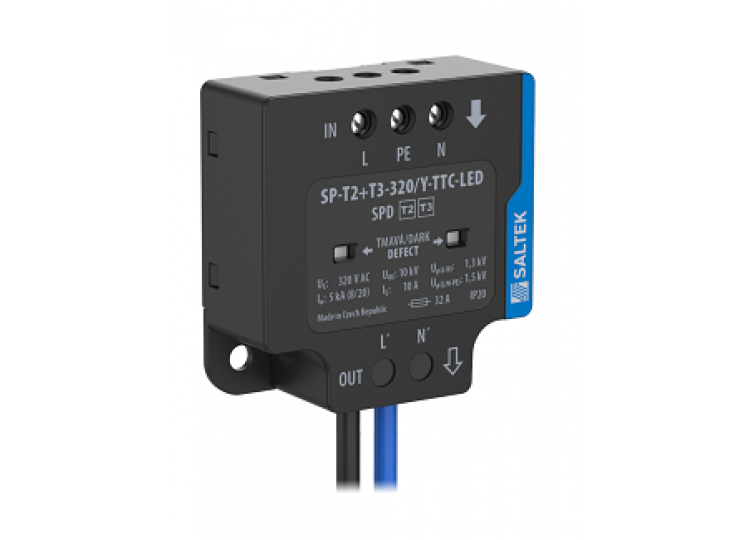

SALTEK - SP-T2+T3-320/Y-TTC-LED - SPD for LED lights

Description
Reviews (0)

Input terminals/output cores,fault signalling by supply interruption.

Surge arrester especially for LED lights.
Installation close to protected equipment in LV power circuits.
Also for equipment in external part of building with high exposure level (according to IEEE C62.41.2).

Specifications:

Parameter name			Parameter value
Type of SPD			T2,T3
Nominal voltage	U_n		230 V AC
Maximum operating voltage	U_c		320.00 V AC
Nominal load current	I_L		10.000 A
Type of network			TT\|TN
Maximum overcurrent protection		32 A gL/gG or C 32 A
Short-circuit current rating	I_SCCR		3.0 kA
Residual current	I_PE		0.004 mA
Nominal discharge current (8/20 µs) L-N	I_n		5.00 kA
Nominal discharge current (8/20 µs) N-PE	I_n		5.00 kA
Maximum discharge current (8/20 µs) L-N	I_max		10.00 kA
Maximum discharge current (8/20 µs) N-PE	I_max		10.00 kA
Test voltage L-N	U_oc		10.0 kV
Test voltage L-PE	U_oc		10.0 kV
Test voltage N-PE	U_oc		10.0 kV
Voltage protection level mode L-N	U_p		1.30 kV
Voltage protection level mode L-PE	U_p		1.50 kV
Voltage protection level mode N-PE	U_p		1.50 kV
Response time L-N	t_a		25 ns
Response time N-PE	t_a		100 ns
TOV 5 s L-N			335 V
TOV 5 s L-PE			440 V
TOV characteristic (TOV 5 s)			withstand
TOV 120 min L-N			440 V
TOV characteristic (120 min)			withstand
TOV 200 ms L-PE			1 455 V
TOV 200 ms N-PE			1 200 V
TOV characteristic (TOV 200 ms)			safe failure
Cross-section of connected conductors solid (max)			2.50 mm²
Cross-section of connected conductors stranded (max)			1.50 mm²
Fault indication			loss of voltage, dark grey indication field
Degree of protection			IP 20
Range of ambient temperatures (min/max)			-40 / 80 °C
Humidity			5 - 95 %
According to standard			EN 61643-11:2012, IEC 61643-11:2011
ETIM Class			EC000942
Customs tariff number			85363030
EAN			8595090562481

Dimensions:

Datasheet:
SP-T2+T3-320/Y-TTC-LED
