Visual fault
signalling, remote fault signalling.
- Varistor
lightning current arrester and surge arrester in 'Y' connection.
- For
protection of PV systems on the roofs, where the separating spark-over distance
is not kept (connection to LPS).
- Maximum continuous operating voltage for PV application: UCPV ≥ 1.2x UOC STC.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Type of SPD |
PV
T1, PV T2 |
|
|
Mounting |
DIN
rail 35 mm |
|
|
Maximum operating voltage mode +/PE,
-/PE |
UCPV |
1
500.00 V DC |
|
Short-circuit current rating |
ISCPV |
10
000 A DC |
|
Residual current mode +/PE, -/PE |
IPE |
0.100
mA AC |
|
Residual current mode +/PE, -/PE |
IPE |
0.010
mA DC |
|
Total discharge current (10/350 µs) |
ITotal(10/350) |
12.50
kA |
|
Lightning impulse current (10/350
µs) |
Iimp |
6.25
kA |
|
Total discharge current (8/20 µs) |
ITotal(8/20) |
80.00
kA |
|
Nominal discharge current (8/20 µs) |
In |
20.00
kA |
|
Maximum discharge current (8/20 µs) |
Imax |
40.00
kA |
|
Voltage protection level mode +/- |
Up |
5.40
kV |
|
Voltage protection level mode +/PE,
-/PE |
Up |
5.40
kV |
|
Response time |
ta |
25
ns |
|
Cross-section of connected
conductors solid (min) |
4.00
mm2 |
|
|
Cross-section of connected
conductors solid (max) |
35.00
mm2 |
|
|
Cross-section of connected
conductors stranded (min) |
2.50
mm2 |
|
|
Cross-section of connected
conductors stranded (max) |
25.00
mm2 |
|
|
Cross-section of remote indication
conductors solid (max) |
1.5
mm2 |
|
|
Cross-section of remote indication
conductors stranded (max) |
1.5
mm2 |
|
|
Fault indication |
red
indication field |
|
|
Remote indication |
potential-free
change-over contact |
|
|
Remote indication contacts |
250V/0,5A
AC,250V/0,1A DC |
|
|
Degree of protection |
IP
20 |
|
|
Range of ambient temperatures
(min/max) |
-40
/ 80 °C |
|
|
According to standard |
EN
61643-31, IEC 61643-31 |
|
|
ETIM Class |
EC001457 |
|
|
Customs tariff number |
85363090 |
|
|
EAN |
8595090541974 |
Dimensions:

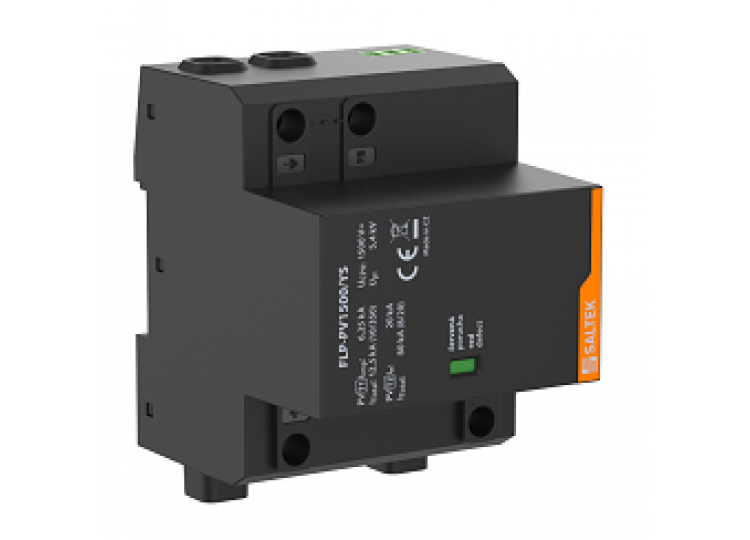

Lightning current and surge arrester for PV systems, 1500 V DC
- Brand: SALTEK - Czech Republic Categories Surge Protection Devices
- Product Code: FLP-PV1500/YS
- MPN: FLP-PV1500/YS
