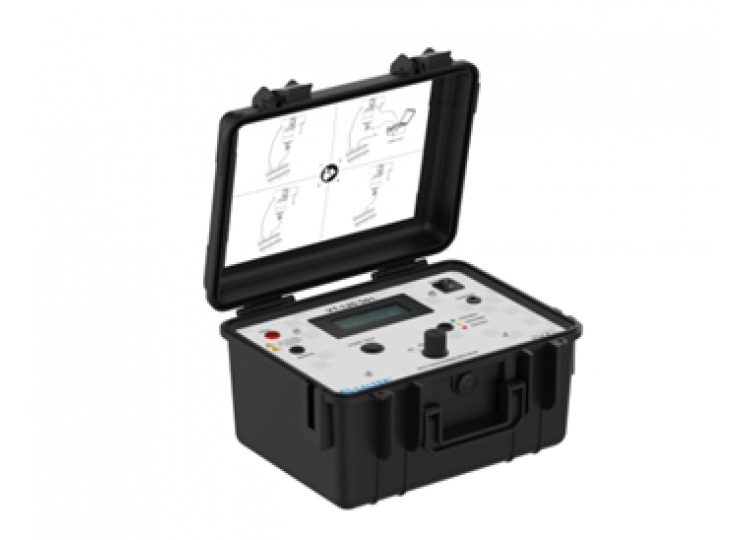

Portable automatic tester of VLD class 2.
- Fully automatic measurement.
- Measurement of Non-triggering voltage and Nominal triggering voltage.
- Easy test result, indicated by red/green color of LED.
- Measurement of leakage current and triggering time.
- For VLDs with triggering level 45/60/120 V.
- For VLDs with thyristor latching current less than 220 Ma.
- Battery charger and testing cables included.
- Special durable ABS case.
Specifications:
|
Parameter name |
Parameter value |
|
|
Number of voltage options (UTn) |
3 (45 / 60 / 120 V) |
|
|
Output voltage range |
35 - 125 V |
|
|
Maximum output current |
220 mA |
|
|
Automatic discharge of the measured object |
no |
|
|
Battery accumulator |
Li-ion 12,6 V, 6800 mAh |
|
|
Charging adapter power supply |
100 - 240 V AC, 50 - 60 Hz |
|
|
Charging time |
4 h |
|
|
Battery life / number of measurements |
8 h / 100+ |
|
|
Display |
LCD, 20 × 4 mm, blue |
|
|
Weight |
2.50 kg |
|
|
Location (when charging) |
Inside |
|
|
Location (in operation) |
Outdoor |
|
|
Temperature range (charging) (min/max) |
10 / 45 °C |
|
|
Temperature range (operating) (min/max) |
−10 / 40 °C |
|
|
Altitude |
up to 4000 m above sea level |
|
|
Humidity |
10 - 95 % |
|
|
Pollution degree (IEC 60664-1) |
2 |
|
|
Degree of protection (closed lid) |
IP 57 |
|
|
Degree of protection (open lid) |
IP 20 |
|
|
Degree of mechanical resistance |
IK 08 (5 J) |
|
|
According to standard |
EN 61010-1, IEC 61010-1, EN IEC 61326-1, IEC 61326-1 |
|
|
ETIM Class |
EC002495 |
|
|
Customs tariff number |
85301000 |
|
|
EAN |
8595090571254 |
Dimensions:
Automatic VLD class 2 tester
