Measurement of insulation resistance. It can be used to provide a more accurate imagine of the SPD status than the visual signaling (which is sufficient and required by standard).
Test tips.
- Tester SPDs (MOVs or GDTs).
- Measurements of insulation resistance.
- Measurement of voltage.
- The database of SPDs in the instrument.
- Easy test result.
- Language of menu CZ/EN.
Specifications:
|
Parameter name |
Parameter value |
|
|
Power supply |
4×
AAA alkaline battery 1.5 V or NiMH accumulator 1.2 V |
|
|
Measuring range (test of
SPDs) |
40 V
÷ 1 050 V |
|
|
Resolution (test of SPDs) |
1 V |
|
|
Reference error (test of
SPDs) |
± (2
% z R + 2 D)* |
|
|
Measuring principle (test
of SPDs) |
Increasing
DC voltage and simultaneously measures the 1 mA current through the SPD |
|
|
Measuring range
(insulation resistance) |
0.100
MΩ ÷ 9.999 GΩ (U = 50 V ÷ 1,000 V) |
|
|
Nominal test current max
(insulation resistance) |
1 mA |
|
|
Automatic discharge of
tested object (insulation resistance) |
yes |
|
|
Measuring range (voltage
TRMS) |
0 V
÷ 600 V DC / AC (45 Hz ÷ 65 Hz) |
|
|
Resolution (voltage TRMS) |
1 V |
|
|
Reference error (voltage
TRMS) |
± (2
% z R + 2 D)* |
|
|
Overvoltage category |
CAT
III / 300 V or CAT II / 600 V |
|
|
Display |
High
contrast bright multicolour graphic OLED |
|
|
Dimensions |
260
x 70 x 40 mm |
|
|
Weight (including
batteries and measuring tip) |
0.36
kg |
|
|
ETIM Class |
EC002495 |
|
|
Remark |
* R
= reading, D = digit |
|
|
Customs tariff number |
90303100 |
|
|
EAN |
8595090500100 |
Datasheet:

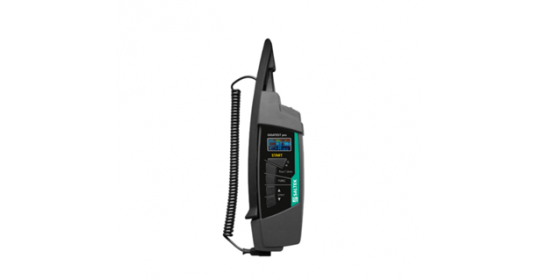

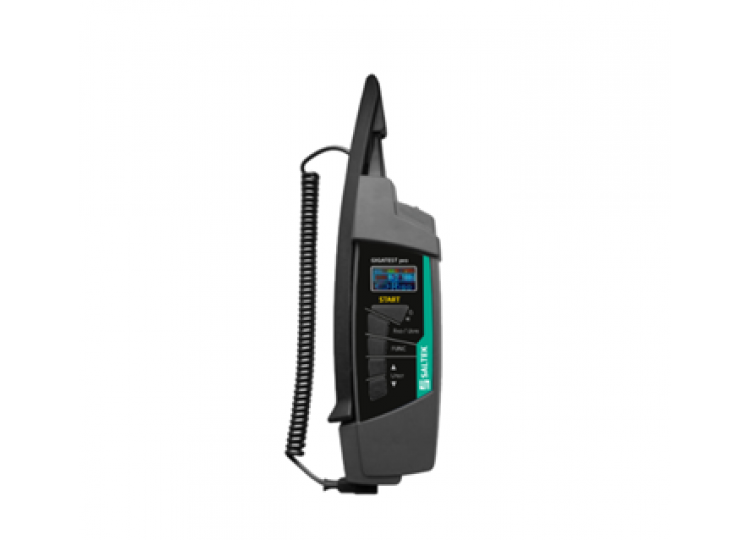

Digital tester for status monitor of SPDs
- Brand: SALTEK - Czech Republic Categories Surge Protection Devices
- Product Code: GIGATESTpro-SALTEK
- MPN: GIGATESTpro-SALTEK
