Technical
Features |
|
|

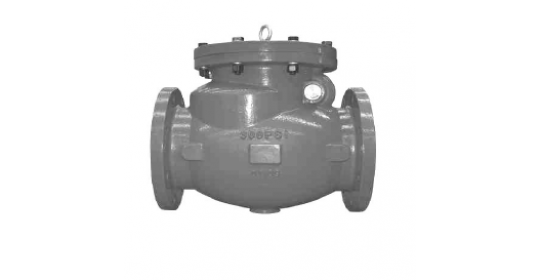

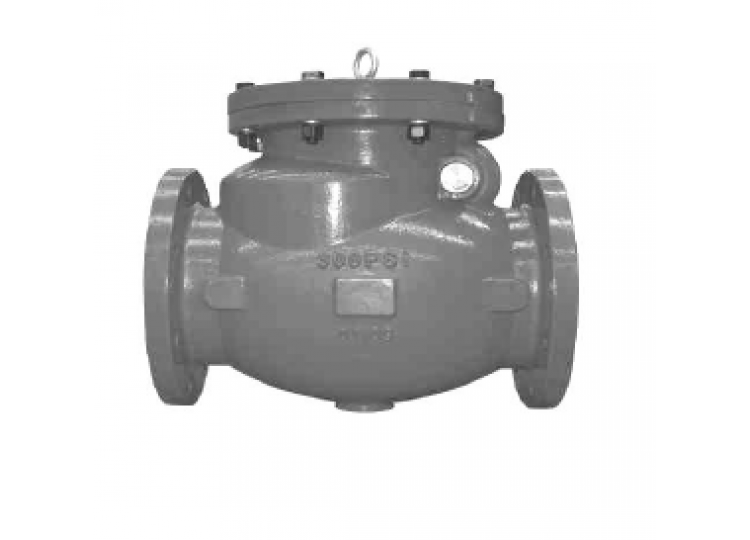

Swing Check
Valve Resilient Seat - 300 psi - Flanged End |
|
|
Specifications:
Conforms to AWWA C-508- Clear Waterway |
|
|
Working
Pressure: 300 PSI. |
|
|
Connection: Resilient seated Flanged ends to ANSI B16.1 Class 125. |
|
|
Suitable for
horizontal or vertical installation. |
|
|
Size range :2” to 12" |
|
|
MATERIAL LIST |
|
|
PART |
SPECIFICATION |
|
1.Body |
Ductile Iron ASTM A536 65-45-1 |
|
2.Cover |
Ductile Iron
ASTM A536 65-45-1 |
|
3.Cover Gasket |
EPDM |
|
4.Clapper Arm |
Ductile Iron
ASTM A536 65-45-1 |
|
5.Disc Ring |
EPDM |
|
6.Disc |
Ductile Iron
ASTM A536 65-45-1 |
|
7.Retainer
Washer Bronze ASTM B-62 C83600 |
|
|
8.Hinge Pin |
Stainless Steel
AISI 304 |
|
9.Plug Washer |
PTFE |
|
10.Seat Ring |
Bronze ASTM
B-62 C83600 |
Dimensions:
2 1/2" SCV ANSI F-706-W, DI, 300 PSI, ULFM/QCD
