Product Overview:

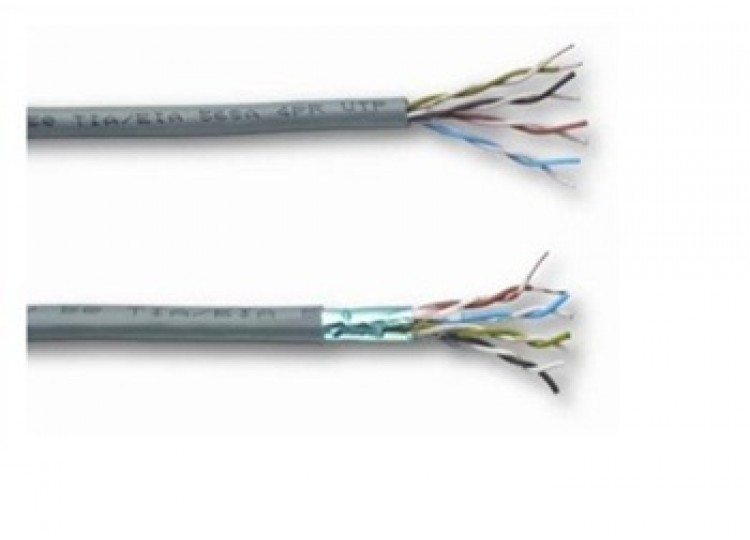

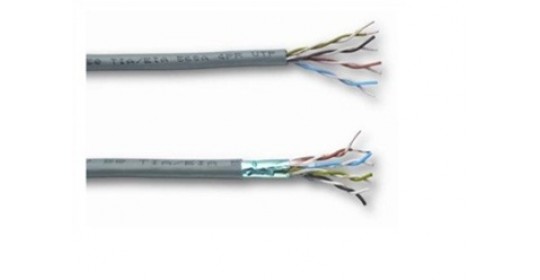

The Press Link Plus 125 MHz range of unscreened and screened cables are designed to enhance a Cat5e Permanent or Channel link performance, so it has a well-defined Power Sum of NExT, FExT, and Delay Skew performance up to 125 MHz.
Features & Benefits:
- PVC or LS0H variants.
- 24 AWG Soft Copper.
- Diameter 5.2 mm (PVC) 5.8 mm (LS0H).
- 80 N Maximum Pull Force.
- 5°C to 40°C Operating Temperature.
- NVP 67% UTP.
- NVP72% FTP.
- Maximum Delay Skew 35ns.
- Maximum Propagation Delay 513ns/km.
- Maximum DC Resistance 88Ώ/km.
Cable Internal 4pr UTP CAT5E 305m/box
