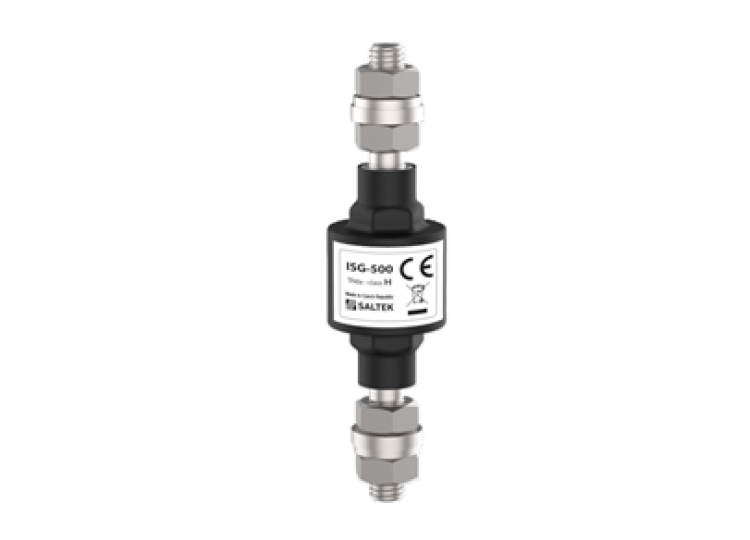

Two M8 bolts with nuts.
- Encapsulated high-performance isolating spark gap.
- For indirect connection (earthing) of isolated conductive parts under lightning conditions, where direct connection is not allowed.
Specifications:
|
Parameter name |
Parameter value |
|
|
Classification |
class H - heavy duty |
|
|
Isolation resistance |
100.00 MOhm |
|
|
Lightning impulse current |
Iimp |
100.00 kA |
|
Rated impulse sparkover voltage |
Uimp |
1.50 kV |
|
Rated power frequency withstand voltage |
UWAC |
0.350 kV |
|
Rated DC withstand voltage |
UWDC |
0.500 kV |
|
Degree of protection |
IP 67 |
|
|
Range of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
According to standard |
EN 62561-3:2012,IEC 62561-3:2012 |
|
|
ETIM Class |
EC000510 |
|
|
Customs tariff number |
85363090 |
|
|
EAN |
8595090541271 |
Dimensions:
Isolation spark gap, 100 kA (10/350 µs),500 V DC.
