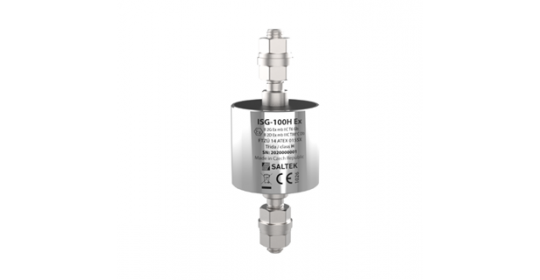

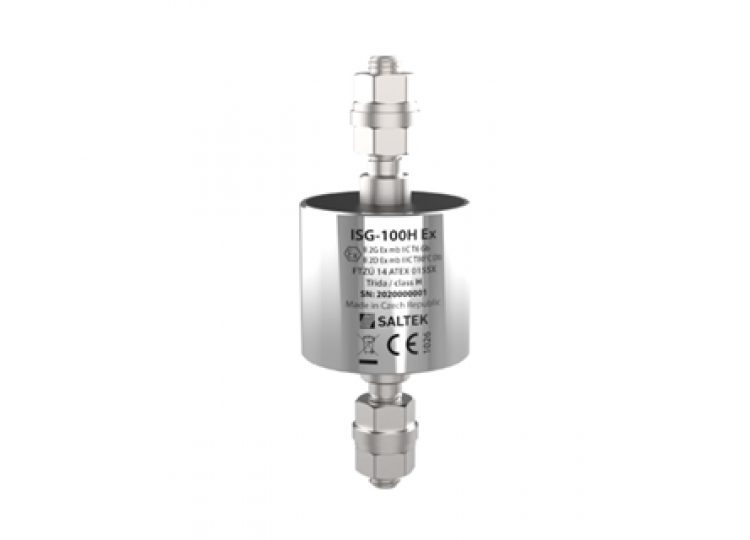

Two M8 bolts with nuts, stainless steel enclosure.
- Heavy duty encapsulated isolating spark gap for use in Hazardous (Ex) Areas II 2G Ex mb IIC T6 Gb and II 2D Ex mb IIIC T80 °C Db.
- For indirect connection (earthing) of isolated conductive parts under lightning conditions.
- For safe installation in Ex zone 1 (gas) or 21 (dust).
Specifications:
|
Parameter name |
Parameter value |
|
|
Classification |
class H - heavy duty |
|
|
Isolation resistance |
100.00 MOhm |
|
|
Lightning impulse current |
Iimp |
100.00 kA |
|
Rated impulse sparkover voltage |
Uimp |
0.95 kV |
|
Rated power frequency withstand voltage |
UWAC |
0.070 kV |
|
Rated DC withstand voltage |
UWDC |
0.100 kV |
|
Degree of protection |
IP 67 |
|
|
Range of ambient temperatures (min/max) |
-40 / 50 °C |
|
|
According to standard |
EN 62561-3, EN 60079-0, EN 60079-18 |
|
|
Explosion-tested version |
II 2G Ex mb IIC T6 Gb, II 2D Ex mb IIIC T80°C Db |
|
|
ETIM Class |
EC000510 |
|
|
Customs tariff number |
85363090 |
|
|
EAN |
8595090541325 |
Dimensions:
Isolation spark gap for Ex areas, 100 kA (10/350 µs), 100 V DC.
