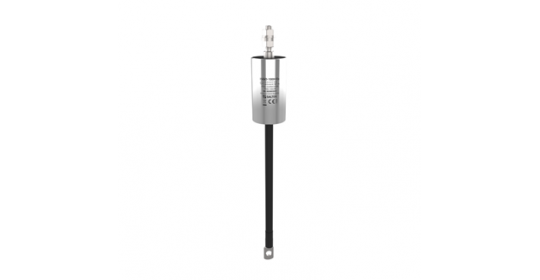

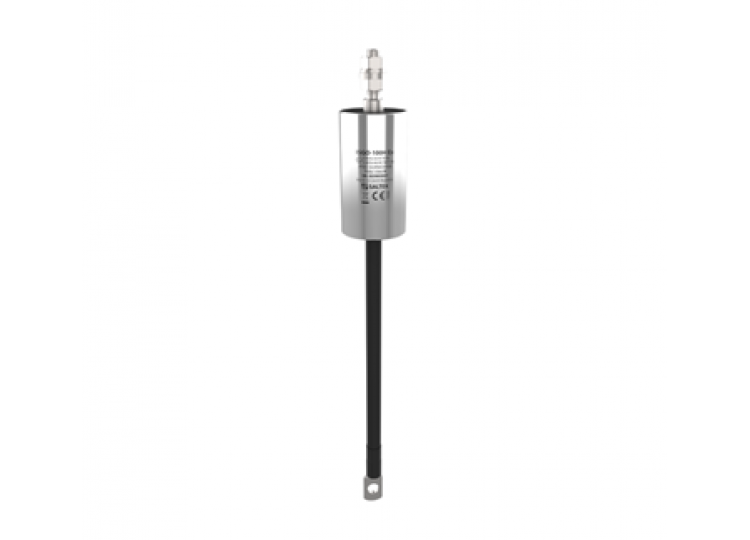

Connecting cable and M8 bolt with nut, stainless steel enclosure.
Heavy duty encapsulated isolating spark gap for use in Hazardous (Ex) Areas II 2G Ex mb IIC T6 Gb and II 2D Ex mb IIIC T80 °C Db.
For indirect connection (earthing) of isolated conductive parts under lightning conditions
For safe installation in Ex zone 1 (gas) or 21 (dust).
Specifications:
|
Parameter name |
Parameter value |
|
|
Classification |
class H - heavy duty |
|
|
Isolation resistance |
100.00 MOhm |
|
|
Lightning impulse current |
Iimp |
100.00 kA |
|
Rated impulse sparkover voltage |
Uimp |
0.95 kV |
|
Rated power frequency withstand voltage |
UWAC |
0.070 kV |
|
Rated DC withstand voltage |
UWDC |
0.100 kV |
|
Degree of protection |
IP 67 |
|
|
Range of ambient temperatures (min/max) |
-40 / 50 °C |
|
|
According to standard |
EN 62561-3, EN 60079-0, EN 60079-18 |
|
|
Explosion-tested version |
II 2G Ex mb IIC T6 Gb, II 2D Ex mb IIIC T80°C Db |
|
|
ETIM Class |
EC000510 |
|
|
Customs tariff number |
85363090 |
|
|
EAN |
8595090561439 |
Dimensions:
Isolation spark gap for Ex areas, 100 kA (10/350 µs), 100 V DC.
