Description (Specs, Features, Technical, etc):

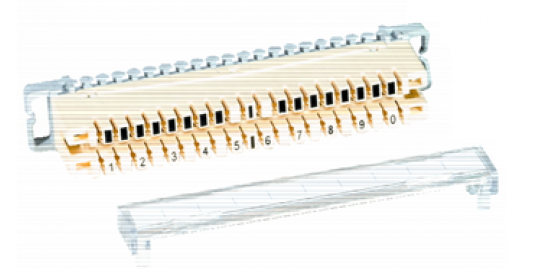

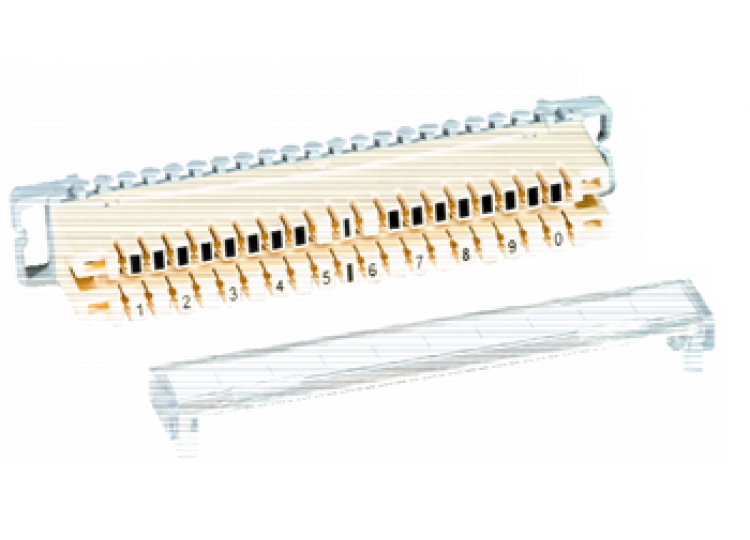

- These OFTEL approved 10 pair modules have been designed and manufactured to fit industry standard back mount frame or connection boxes.

Features & Benefits :

• LSA compatible
• Each contact accepts up to two wires in the range 0.4 to 0.63 (mm)
• Terminates 10 pairs
• Facilitates ‘look both ways’ disconnection testing
• Suitable for use with designation strips
• OFTEL general approval NS/G/23/L/100005

Additional Information :

Disconnection modules have two piece contacts normally closed, incorporating a disconnection facility. They provide a continuous link between permanent wiring and jumper wiring, giving provision for monitoring access and over voltage protection; with the advantage of individual pair disconnection and four wire test access.

Materials

• Moldings: Flame retardant ABS
• Contacts: Phosphor bronze
• Plating: 20u” Silver over Nickel

Dimensions:
