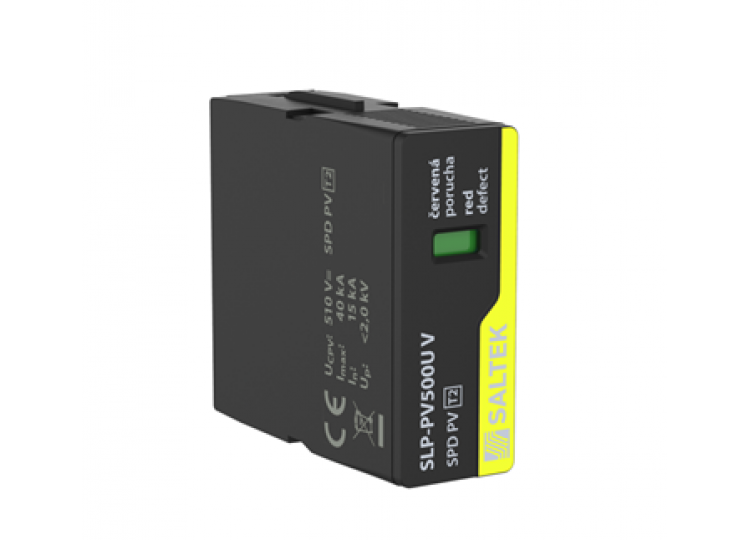

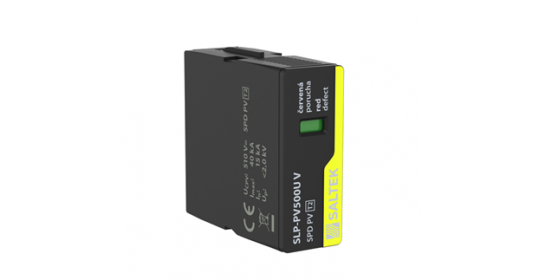

- Replacement module for SLP-PV500 V/U.
Specifications:
|
Parameter name |
Parameter value |
|
|
Maximum operating voltage |
Uc |
510.00 V DC |
|
Nominal discharge current (8/20 µs) |
In |
15.00 kA |
|
Maximum discharge current (8/20 µs) |
Imax |
40.00 kA |
|
Response time |
ta |
25 ns |
|
Fault indication |
red indication field |
|
|
ETIM Class |
EC000941 |
|
|
Customs tariff number |
85363030 |
|
|
EAN |
8595090536949 |
Dimensions:
Replacement module for SLP-PV500 V/U.
- Brand: SALTEK - Czech Republic Categories Surge Protection Devices
- Product Code: SLP-PV500U V/0
- MPN: SLP-PV500U V/0
