Two M8 bolts with nuts.

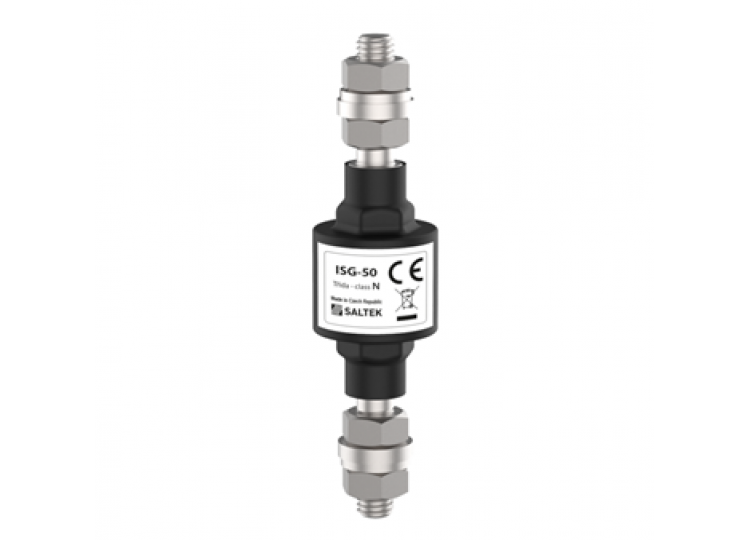

- Encapsulated high-performance isolating spark gap.
- For indirect connection (earthing) of isolated conductive parts under lightning conditions, where direct connection is not allowed.
- Very low DC withstand voltage.
Specifications:
|
Parameter name |
Parameter value |
|
|
Classification |
class N - normal duty |
|
|
Isolation resistance |
100.00 MOhm |
|
|
Lightning impulse current |
Iimp |
50.00 kA |
|
Rated impulse sparkover voltage |
Uimp |
0.90 kV |
|
Rated power frequency withstand voltage |
UWAC |
0.035 kV |
|
Rated DC withstand voltage |
UWDC |
0.050 kV |
|
Degree of protection |
IP 67 |
|
|
Range of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
According to standard |
EN 62561-3:2012,IEC 62561-3:2012 |
|
|
ETIM Class |
EC000510 |
|
|
Customs tariff number |
85363090 |
|
|
EAN |
8595090540861 |
Dimensions:
Isolation spark gap, 50 kA (10/350 µs), screws, withstand voltage 50 V DC.
Related Product

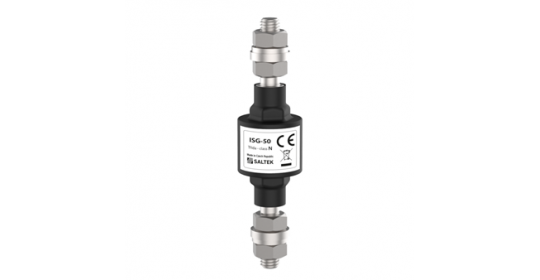

Isolation spark gap, 50 kA (10/350 µs), screws, withstand voltage 100 V DC.
