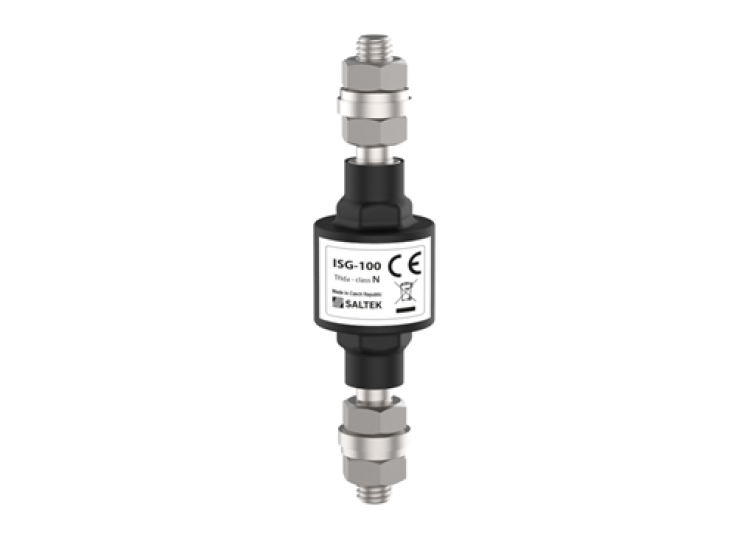

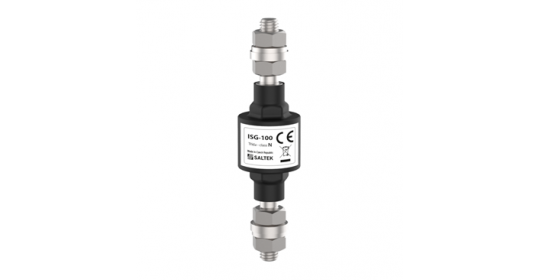

Two M8 bolts with nuts.
- Encapsulated high-performance isolating spark gap.
- For indirect connection (earthing) of isolated conductive parts under lightning conditions, where direct connection is not allowed.
Specifications:
|
Parameter
name |
Parameter
value |
|
|
Classification |
class
N - normal duty |
|
|
Isolation
resistance |
100.00
MOhm |
|
|
Lightning
impulse current |
Iimp |
50.00
kA |
|
Rated
impulse sparkover voltage |
Uimp |
0.95
kV |
|
Rated
power frequency withstand voltage |
UWAC |
0.070
kV |
|
Rated
DC withstand voltage |
UWDC |
0.100
kV |
|
Degree
of protection |
IP
67 |
|
|
Range
of ambient temperatures (min/max) |
-40
/ 80 °C |
|
|
According
to standard |
EN
62561-3:2012,IEC 62561-3:2012 |
|
|
ETIM
Class |
EC000510 |
|
|
Customs
tariff number |
85363090 |
|
|
EAN |
8595090540786 |
Dimensions:
Isolation spark gap, 50 kA (10/350 µs), screws, withstand voltage 100 V DC.
