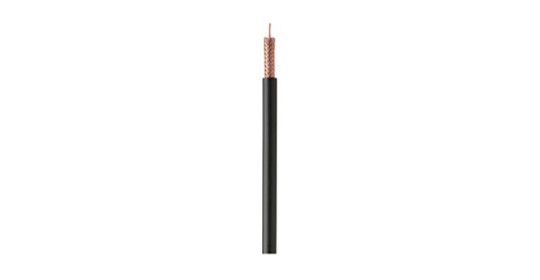

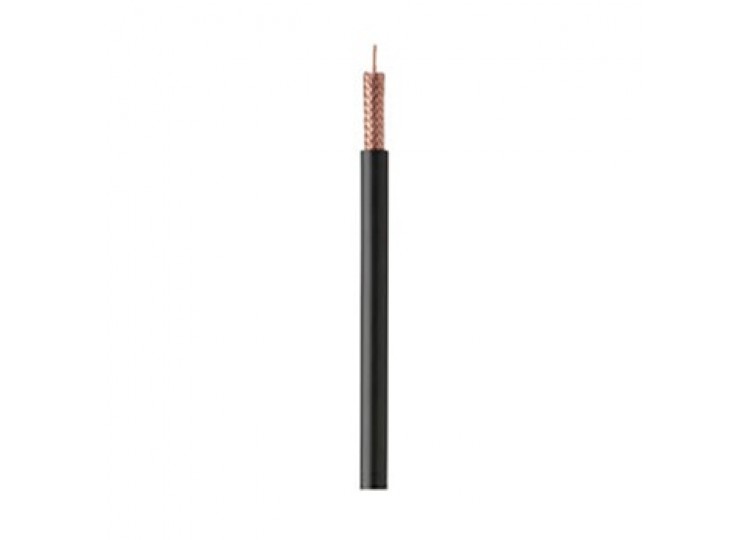

Description:
- Conductors: 14 AWG (1/.064) Solid Bare Copper.
- Rating: CL2/UL-1581.
- Dielectric: Foam Polyethylene color natural.
- Shielding: 95% Bare Copper Braid.
- Jacket: PVC.
- 1000' Reel.
Specifications:
- Conductors - 14 AWG (1/.064) Solid Bare Copper
- Dielectric - Foam Polyethylene color natural
- Shielding - 95% Bare Copper Braid
- Jacket - PVC
- Impedance (ohms) - 75
- Capacitance (pF/ft) - 17.3
- Velocity of Propagation (%) - 78
- Attenuation (Max db/100 ft) - 50 MHz: 1.0, 100 MHz: 1.6, 200 MHz: 2.3, 400 MHz: 3.8, 700 MHz 4.7, 100 MHz 5.4
- Jacket Color - Black
- Jacket Print (white) - COLEMAN CABLE 992161 E100316 14 AWG RG 11/U TYPE CL2 (UL) OR AWM 1354
- MSHA (Indented) - P-07-KA110022-MSHA
- Applicable NEC Article - 725
- Flame Rating - UL-1581 Vertical Tray Flame Test
- Maximum Temperature Rating - 60C
- Operating Volts - 30 V RMS max.
- Approximate Weight (lb/1000 ft) - 85
Cable RG11,CCTV,14AWG, CU COND.,95% BC,BRAID Shield-305m/Rl.
