- Allows to receive and send SMS messages (2G, 3G). Provides Ethernet over LTE (4G).
- VT740 allows you to receive notifications over Ethernet, SMS notifications, SNMP connection, and others.
- Provides network reservation: e.g. if the LAN connection fails, the Ethernet connection is secured using LTE 4G.
- Can be installed in VT335t, VT336t, VT825t, VT855t, and VT960t monitoring systems. Power cycling is an embedded function.
Specifications
- Used for:Network reservation, SMS notification messages, Ethernet access, Control over AT commands
- Device type:Extenion slot
- Used in:VT335t, VT336t, VT825t, VT855t, VT960t monitoring systems
- Chip:SIMCom, SIM7600E
- Frequency Bands Supported:
- -2G: GSM 900 (B8), GSM 1800 (B3)
- -3G: UMTS 900 (B8), UMTS 2100 (B1)
- -4G: LTE 900 (B8), LTE 1800 (B3), LTE 2100 (B1)
- TX - GSM:900 MHz to 12.75 GHz
- TX - LTE:30 MHz to 12.75 GHz
- Specific Frequencies and Frequency Bands Supported:
- -2G:
- 900 MHz (B8): 902.40 MHz
- 1800 MHz (B3): 1750 MHz
- -3G:
- 900 MHz (B8): 883.53 MHz
- 2100 MHz (B1): 1922.60 MHz
- -4G:
- 900 MHz (B8): 899.45 MHz
- 1800 MHz (B3): 1745.63 MHz
- GNSS / GPS:gpsOne Gen 8B; standalone; assisted, XTRA
- Uplink:up to 5Mbps
- Downlink:up to 10Mbps
- Manufactured in:Slovak Republic, E.U., Vutlan s.r.o.
- HS Code:9025 11 800
- GTIN:8588009886341
- Certificates:ROHS, REACH, CE

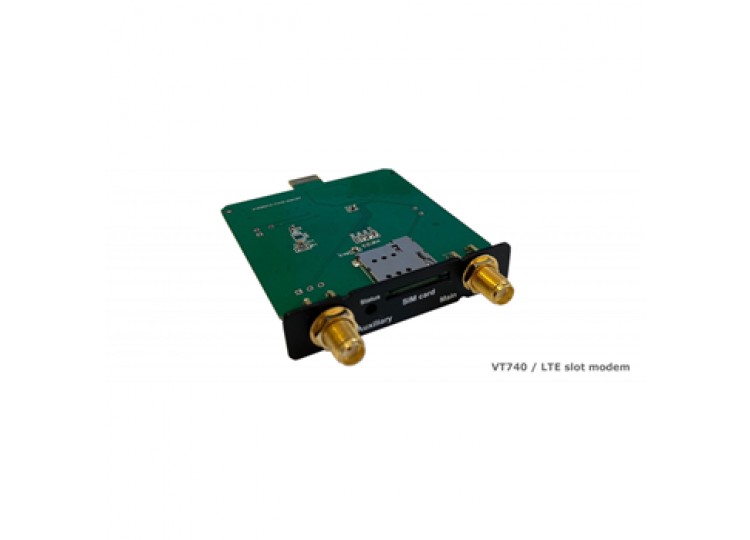

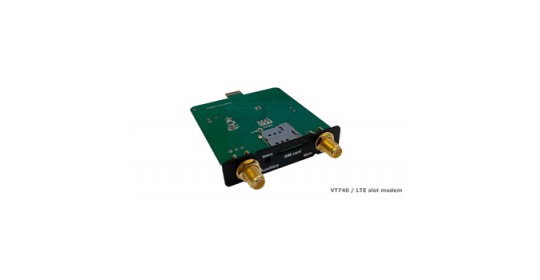

LTE Modem Vutlan.
- Brand: VUTLAN - Slovak Republic Categories Monitoring
- Product Code: 850.565.00168
- MPN: VT740
