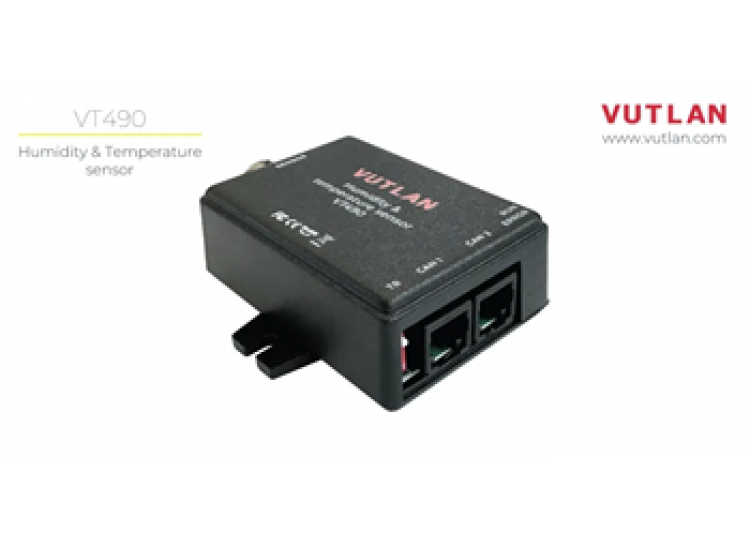

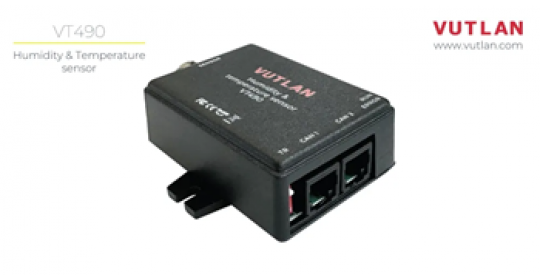

VT490 is a high-quality humidity and temperature sensor with a reliable price.
By connecting several VT490 in a CAN daisy chain you can measure temperature and humidity parameters in each location of a room or a server rack.
A separate element inside the web interface represents every environmental parameter of VT460.
This allows us to set individual thresholds and set up event triggering such as notifications and other actions.
The dew point is easily calculated using the temperature and humidity parameters of VT490 inside the Vutlan web interface.
CAN devices and sensors can be chained together. Up to 10-32 CAN devices can be connected in a chain. You can connect CAN sensors or extensions on a CAN bus line.

Models:

Specifications

Detects:Humidity and temperature
Sensor type:CAN bus sensor
Network Interface:CAN open
Inputs/Outputs:x2 RJ11 6P4C ports
Daisy chain:Multiple sensors can be connected in a chain along with other types of CAN sensors and extensions.
Temperature Accuracy: ±0.4 °C (max), –10 to 85 °C
RH accuracy: ± 3% RH (max), 0–80% RH
Resolution:Resolution
Operating temperature:Optimal temperature range: -10° C to +80° C
Operating humidity:0 to 95 %
Power input:12V DC, 1A
Current consumption:1 Watt
Max. distance from the unit:225 m
Dimensions:68 x 47 x 26 mm
Mounting possibilities:Desktop, Indoor, Wall mount
LED indicators:Red / Green (RUN/ERR)
Manufactured in:Slovak Republic, E.U.
HS Code:9025 80 400
GTIN:9025 80 400
