- The sensor detects water by the drop in resistance of the WLC water leak cable.
- WLC leak cable must be used together with VT591. VT591 is ordered separately.
- VT591 can be connected to any analog port (A1...A8) of the Vutlan monitoring unit.
- The maximum amount of VT591 sensors connected to a single monitoring unit and the maximum length from the monitoring or extension unit can be extended using the VT408 / Sensor extension unit.
Specifications
- Description: WLC can work in high humidity, pollution, and hazardous waste
- Detectable liquidsClean, polluted & distilled water; acids; alkalis; alcohols, and other electrically conductive liquid
- Cable lengths: Order options include 3m, 6m, 10m, 15m, 25m, 50m.
- Diameter:6.5 mm cable
- Storage temperature: Max +75° C
- Operating humidity to 95 % (Non-Condensing)
- Outputs:2 wires
- Maximum cable length:100 meters

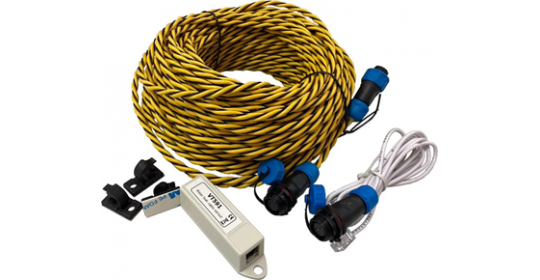

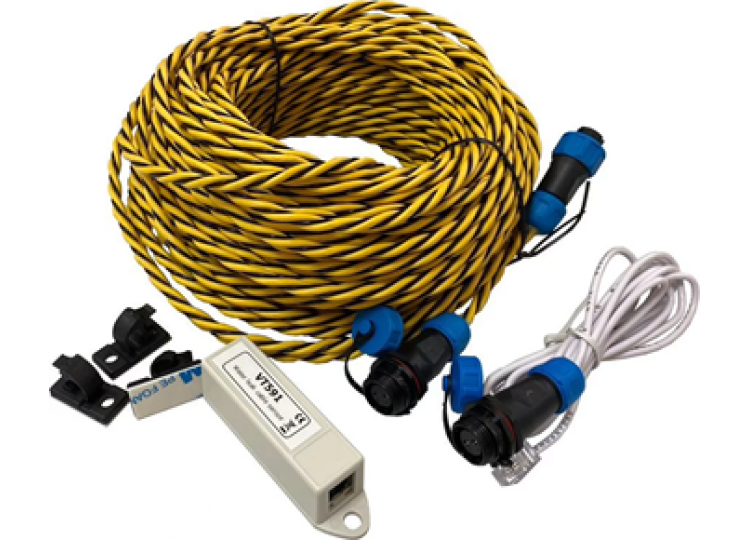

Water Detection Cable 10m.
