Vutlan – VT520– PDU Accessories| DAFNIA

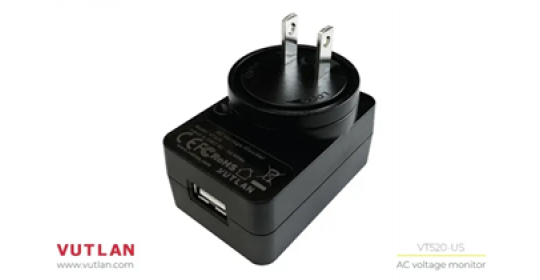

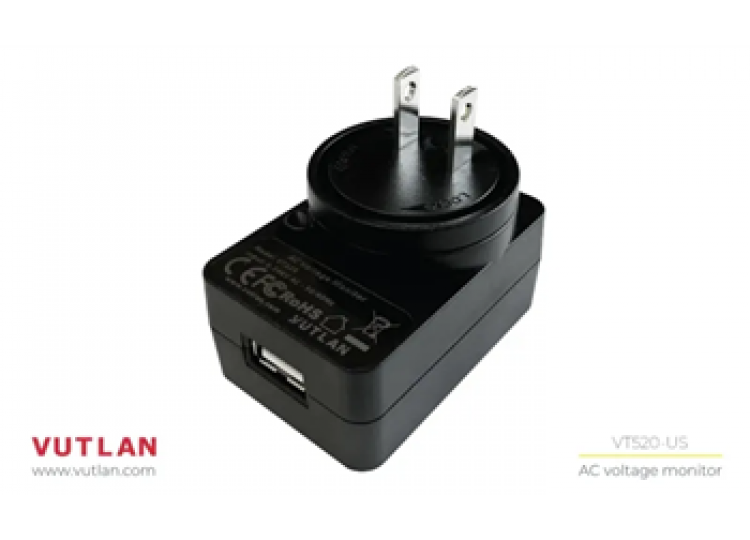

VT520 voltmeter is needed for the measurement of AC voltage 0-246V.
Can be inserted into a power socket or power strip for measuring voltage.
Multiple power socket plug types are possible when ordering.
Can be connected to any analog port (A1...A8) of the Vutlan monitoring unit. The sensor is plug-and-play.
The maximum amount of sensors connected to a single Vutlan monitoring unit and the maximum length from the unit can be extended using the VT408 / Sensor extension unit.

Specifications:

Type of sensor:Analog sensor
Measured voltage:0 .. 246 V AC
Measures:AC voltage
Daisy chain:No
Cable length:RJ11/RJ12 6P4С to USB cable included, 1.8 meters.
Power consumption:60 mW
Operating temperature:Optimal temperature range: -10° C to +80° C
Operating humidity:0 to 95 %
Mounting possibilities:Insert in the socket. See order options for socket types.
Max. distance from the unit:100 m
Outputs terminals:RJ-11 / 6P4C
Manufactured in:Slovak Republic, E.U.
HS Code:9030 33 300
EAN:8588009886143
