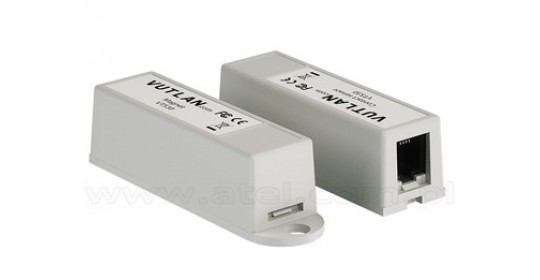

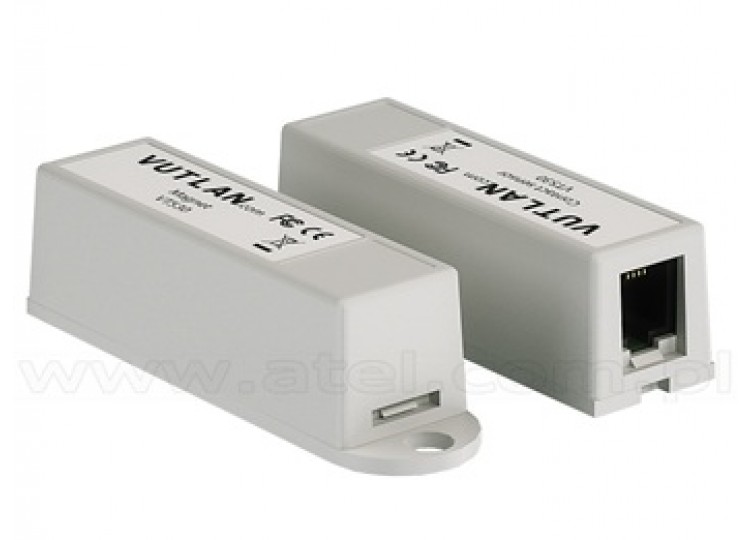

The VT530 Access Sensor is essential for access control and is designed to monitor the status of doors and windows (open or closed). It consists of two parts: a magnet and a sensor. This plug-and-play sensor easily connects to any analog port of Vutlan monitoring devices. The maximum amount of sensors can be extended using the VT408 / Sensor extension unit.
Specifications:
- Type of sensor: Analog sensor
- Measures: Contact closed/open using a magnet
- Daisy chain :Yes. All sensors in a chain show as 1 element in web interface.
Triggering any sensor triggers the same element.
- Cable length:RJ11 / RJ12 (6p4c), Telephone cable 2m included
- Power consumption:
- 55 mW – Off
- 200 mW - ON
- Operating temperature:Optimal temperature range: -10° C to +80° C
- Operating humidity:0 to 95 % (Non-Condensing)
- Inputs:RJ11 / RJ12 (6p4c)
- Outputs:RJ11 / RJ12 (6p4c)
- Mounting possibilities:Mounting bracket, bolts, and stickers included for installation inside IT
racks and cabinets
- Max. distance from the unit:150 m
- Origin of goods:Made in EU
- HS Code:8531 10 300
- GTIN:8588009886167
Access Sensor.
