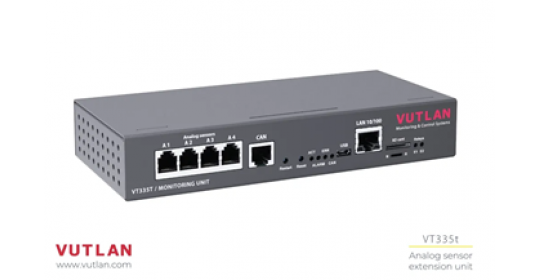

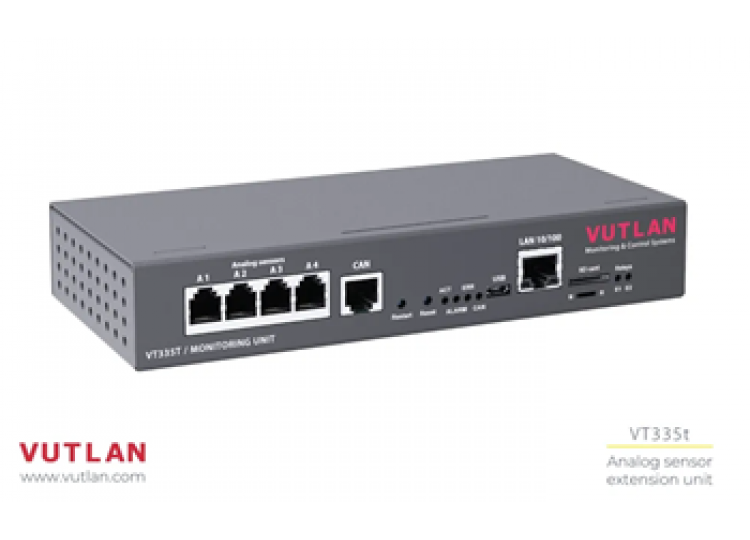

The VT335 / IT Room Monitoring Unit can be used for remote environmental monitoring in small IT rooms. Its primary features include:
- Environmental Monitoring: Measures temperature, humidity, voltage, access, smoke, dust, vibration, access, leakage, movement, airflow.
- I/O Controller: 4 analog Plug and Play inputs, CAN input, 4 dry contacts IN, 2 relays 12V, SD, USB, extensions.
- Scalability: Supports up to 800 elements, including sensors, virtual sensors, logic, notifications.
- Built-in Web Interface: 100Mbit/s, IPv4, IPv6 by demand.
- Extensions: LTE modem, Modbus, Reader.
- Notifications: Telegram, mail; VPN, SMS and voice call in case of 4G modem built-IN.
- Processor: 720Mhz dual-core Cortex-A7, 128Mbit RAM.
- Power consumption: 1W.
Specification
Device type:Environmental monitoring unit
Network:100Mb, IPv4, IPv6 by demand.
Analog ports:4 Plug and Play
Response time:1 sec
CAN:1
Max. distance from the unit:Analog Plug and Play sensors: 50-150m, CAN - 225m
Maximum units in a CAN bus:31, depends on CAN device type
Relays with output 12V:2
Dry contacts IN:4
Mounting:Desktop, 19"
Extensions:SD, USB-C
Expansions:4G, RS485
Status Indicators:Red (Error), Green Led, Yellow, Orange (Relais)
Processor:Dual core ARM, 720 Mhz, 128 MB
Power supply:12V DC
Power consumption:1W, 85 mA
Operating temperature:-10° C to +80° C
Origin:Made in EU
HS Code:8537 10 910
Mon Unit W/ CAN,Ether Prt,SD,USB,4Anlg,4Dig,2 12V -W/UK Plu.
