The VT408 expansion module increases the number of analog sensors that can be connected to any Vutlan monitoring device. Each module adds 8 analog sensor ports, providing greater scalability when monitoring complex environments. All connected sensors are automatically detected and integrated into the system. CAN devices can be connected in a chain.

Specifications:

Device type:CAN bus device

Network Interface:CAN open

Inputs:x8 analog sensor ports, x2 RJ11/RJ12 6P4C CAN ports

Daisy chain:Yes, can be connected in a chain with other CAN bus devices.

Operating temperature:-10° C to +80° C

Max. distance from the unit:

Max. bus length: 225m,
Max. length of analog sensor cables: 50-150m (depends on sensor type)

Maximum units in a chain:You can install a maximum of x24 VT 408 units, provided that no other CAN devices are installed in a CAN chain.

Power input:12V DC

Accuracy:Width 129, Height 28.6, Depth 56 mm

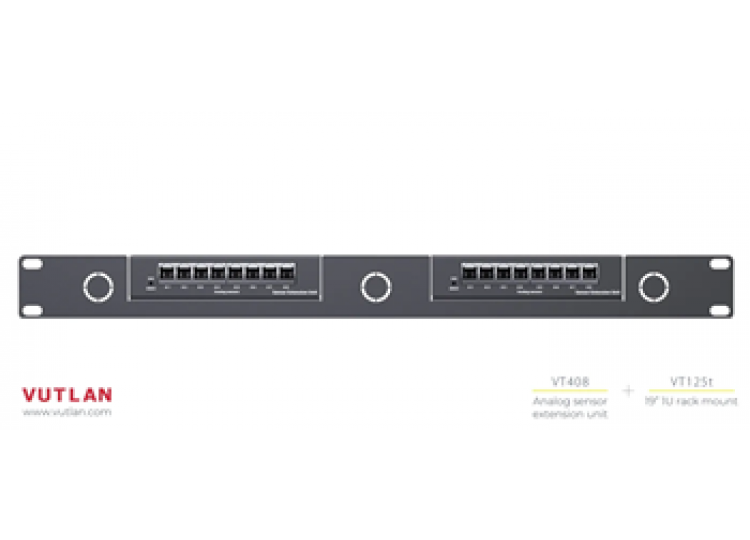

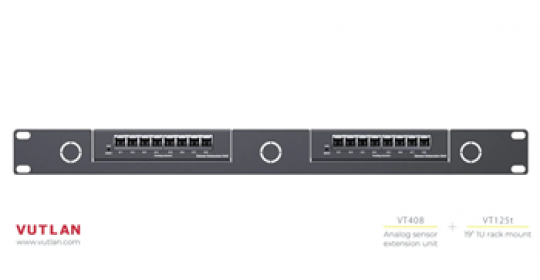

Mounting possibilities:VT123 / Wall mount brackets VT125t / 19” Mounting kit for two VT408 units

Status Indicators:Red (Error) / Green Led (Run)

TR switch:Activate if the unit is the last unit in a CAN bus chain.

Origin of goods:Made in EU

HS Code:8471 50 000

GTIN:8588009886389
