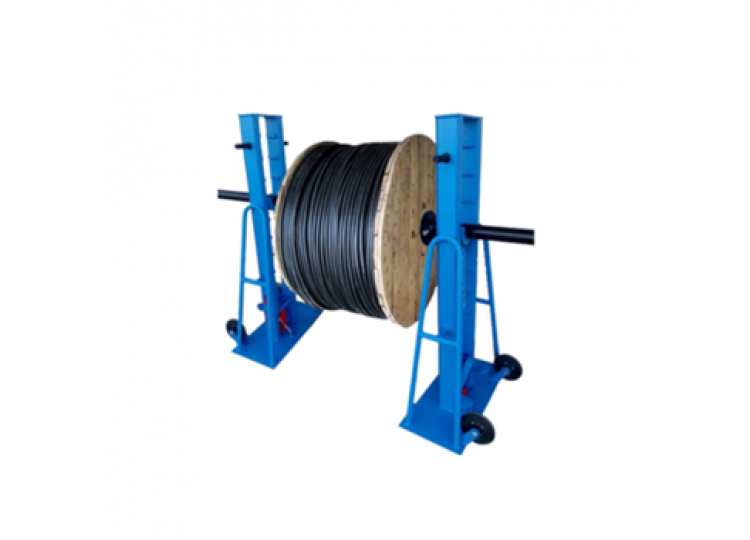

Cable drum lifting jack is an uncomplicated solution for spooling large drums of power and data cables, conveyor belts etc. It involves two independent cable stands with hydraulic bottle jacks and a high tensile spindle secured in the V block, with a trapezium structure. It can be utilized at different kinds of reeling conditions. The hydraulic lifting makes the pick up and transportation effortless, trundles which is installed below makes it even more easy to transport.
Specifications:
|
Item |
Suitable for belting bobbin cable diameter |
Suitable diameter of spool |
Shank Diameter Weight |
|
Dimension |
|
10T |
Φ700mmΦ3200mm |
≤1800mm |
Φ89mm |
186kg |
170 x 70 x 45cm |
Axle Specifications:
|
Item |
Length |
Outer diameter |
Inner diameter |
Load capacity |
Weight hollow bar |
Weight Solid bar |
|
Metal bar/ Shank 10 |
2.0m |
|
73mm |
<10 Ton |
|
105kg |

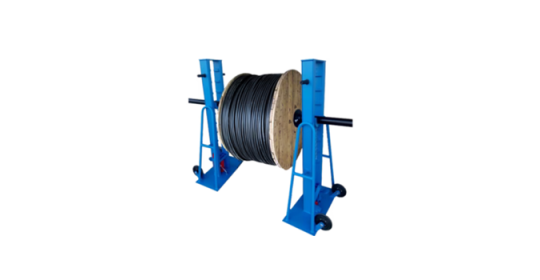

Cable Drum Lifting Jacks 10T W/Axle.
