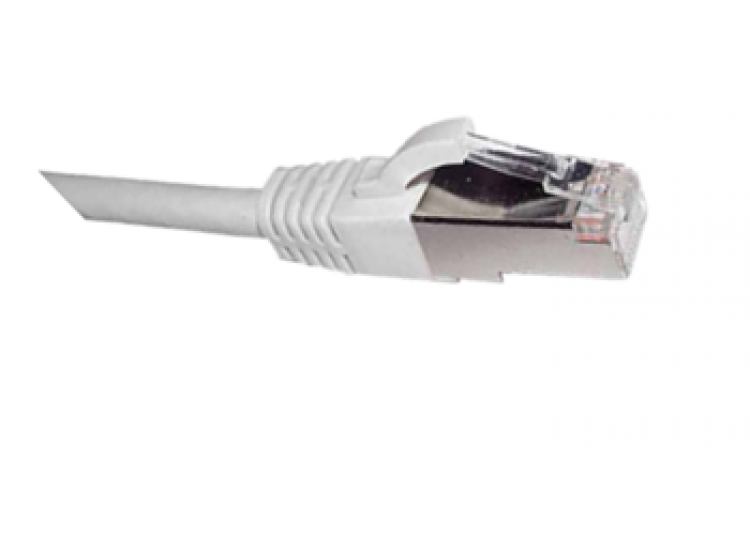

WEBB CAT6 Screened foiled S/FTP patch cord are designed to meet and exceed ANSI/TIA/EIA 568B standards. WEBB patch cords are made by high-quality patch cable and RJ45 modular plug. These cables are simple, cost effective, reliable provides high speed transmission of data.
Features:
- 500 MHz with over 10Gbps.
- Shielded & Foiled.
- RJ45 Connectors - Flash gold plated.
- Durable for 750 insertion cycles.
- Available in LSZH, PVC, PE sheaths.
- Available in diffrent lengths.
- Available in different colors.
Applications:
- Data centre and telecommunication networks.
- LAN applications.
- CATV - cable television, CCTV.
Technical Specifications:
- Conductor - Stranded bare copper
- Insulations - Foamed polyethylene
- Operating life- 750 Insertion cycle
- Dielectric pair - 4 pairs
- Conductor material – Copper
- Contact material - Phosphor bronze
- Contact plating - 60μ gold
- Overall diameter - 5.7±0.30mm
- Bending radius - 15xOD
- Contact resistance - 30m Ω
- Uninsulated resistance - 150 MΩ/km minimum
- Connector - RJ45
- Cabling standard - EIA/TIA 568B
- Flame retardance, smoke emission - IEC 60332-1, IEC 61034
- Typical applications - IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T

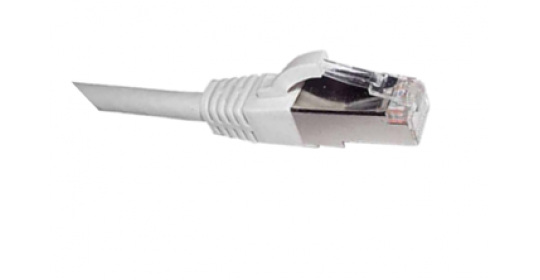

Patch Cord Cat 6A SFTP 24AWG 10M LSOH-Grey Webb.
