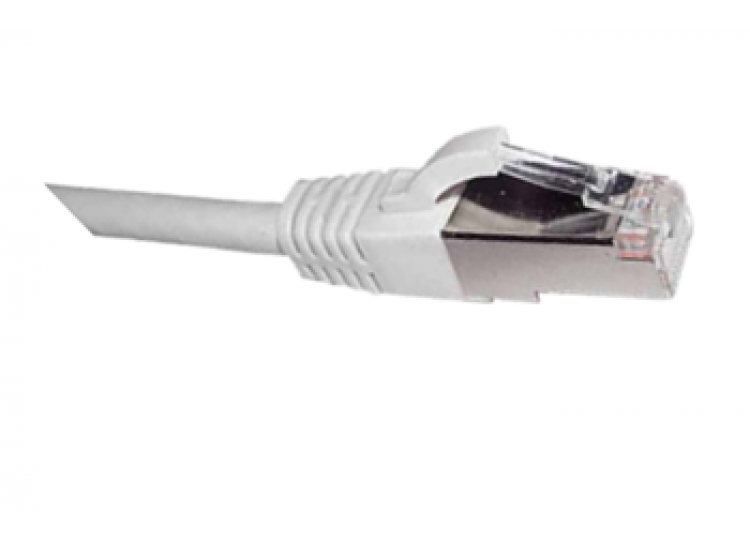

WEBB CAT6 Screened foiled S/FTP patch cord are designed to meet and exceed ANSI/TIA/EIA 568B standards. WEBB patch cords are made by high-quality patch cable and RJ45 modular plug. These cables are simple, cost effective, reliable provides high speed transmission of data.
Features:
- 500
MHz with over 10Gbps.
- Shielded
& Foiled.
- RJ45
Connectors - Flash gold plated.
- Durable
for 750 insertion cycles.
- Available
in LSZH, PVC, PE sheaths.
- Available
in different lengths.
- Available in different colors.
Applications:
- Data
centre and telecommunication networks.
- LAN
applications.
- CATV
- cable television, CCTV.
Technical Specifications:
|
Conductor |
Stranded bare copper |
|
Insulations |
Foamed polyethylene |
|
Operating life |
750 Insertion cycle |
|
Dielectric pair |
4 pairs |
|
Conductor material |
Copper |
|
Contact material |
Phosphor bronze |
|
Contact plating |
60μ gold |
|
Overall diameter |
5.7±0.30mm |
|
Bending radius |
15xOD |
|
Contact resistance |
30m Ω |
|
Uninsulated resistance |
150 MΩ/km minimum |
|
Connector |
RJ45 |
|
Cabling standard |
EIA/TIA 568B |
|
Flame retardance, smoke emission |
IEC 60332-1, IEC 61034 |
|
Typical applications |
IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T |

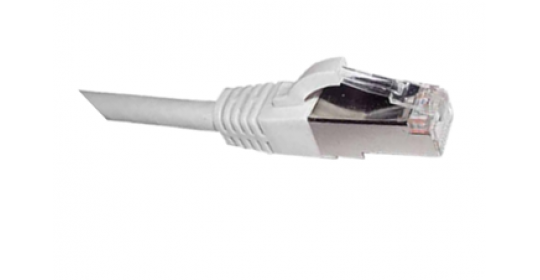

Patch Cord Cat 6A SFTP 24AWG 25M LSOH-Grey Webb.
