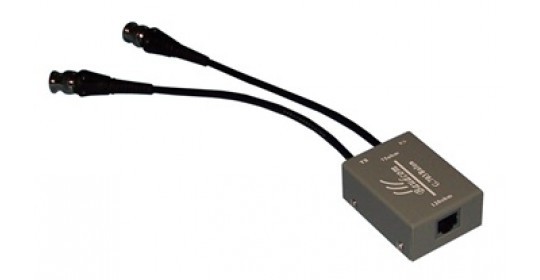

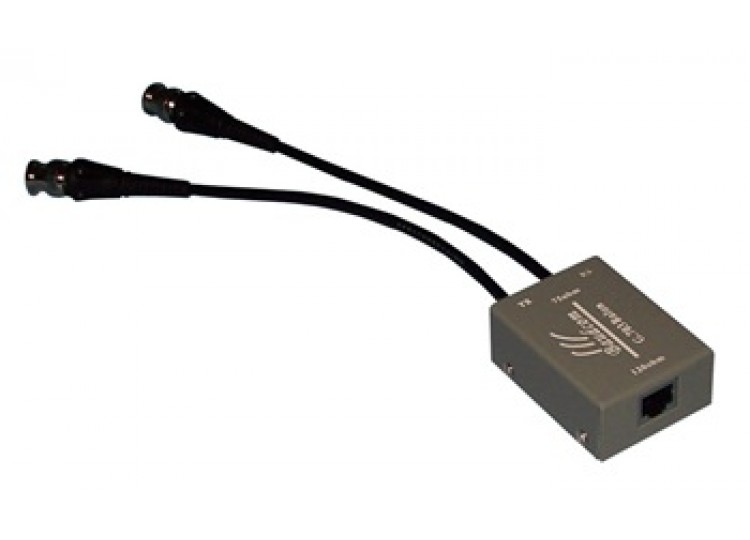

Webb’s dual balun adapter is a miniature G.703 balun that allows 75 ohm coax hardware to communicate with 120 ohm twisted pair equipment. It supports E1data rates to 2.048 Mbps and E2 to 8.448 Mbps. The dual balun receives 75 ohm signals and converts them to 120 ohm for transmission over a network. The signals output by dual balun are scaled to match the pulse shape requirements specified by the CCITT G.703 standard.

Features:

• No AC power or batteries required.
• Link to data isolation: 250V Bi-directional signal conversion.
• Operating temperature: 0 to 75°C.
• Compact design.

Specifications:

• 2-8 Mbit/s speed version for E1 (T1) data streams
• Impedance: 75 ohm to 120 ohm/100 ohm.
• Insertion loss: Max. 0.2dB (2Mbps); Max. 0.3dB(8Mbps).
• Return loss: -29dB(2Mpbs); -21dB(8Mpbs).
• Cross talk: better than -80dB from 0.1 to 12MHz between any 2 baluns mounted distance up to 15mm.
• 2-8-34 Mbit/s speed version for E2 (T2) data streams
• Impedance: 75 ohm to 120 ohm/100 ohm.
• Insertion loss: Max. 0.3dB (8Mbps); Max. 0.9dB from 0.2-70MHz.
• Return loss: -21B(8Mbs); -15dB from 1 to 70 MHz.
• Cross talk: better than -60dB from 1MHz to 70MHz between any 2 baluns mounted distance up to 15mm.
• 34 to 155 Mbit/s speed version for E3 (T3) and higher data streams
