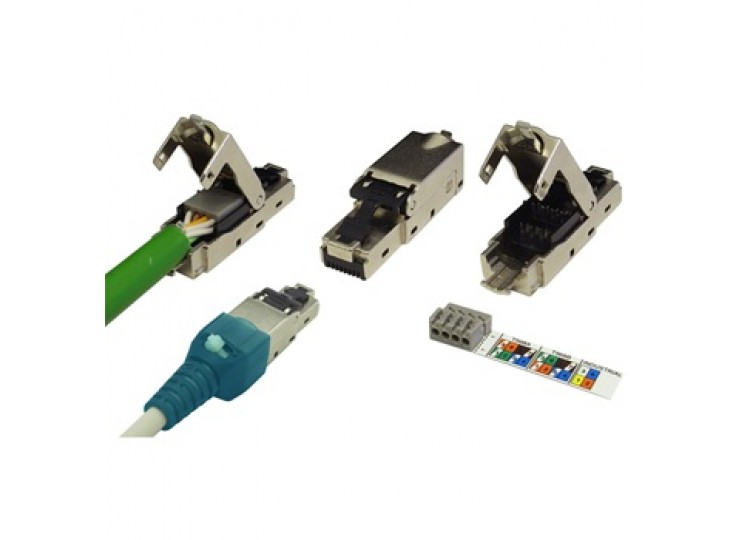

Webb CAT6 shielded field termination plug is designed to terminate cables that operate in high-bandwidth gigabit networks. Its shielding eliminates electromagnetic noise. It is a tool-free plug with an open-hinged design that simplifies cable termination.
Features:
- CAT6 Shielded.
- Plug body material: zinc alloy.
- Contact plating: phosphor bronze, finished with 6µ to 50µ gold plating.
- Applicable with stranded AWG 22-27 and solid AWG 22-26 wire sizes.
- Maximum conductor insulation diameter: 1.65mm.
- Mating cycles: minimum 750.
- Current rating: 1.5A.
- Dielectric withstanding voltage: 1000V DC.
- Insulation resistance: minimum 500MΩ.
- Contact resistance: maximum 20MΩ.

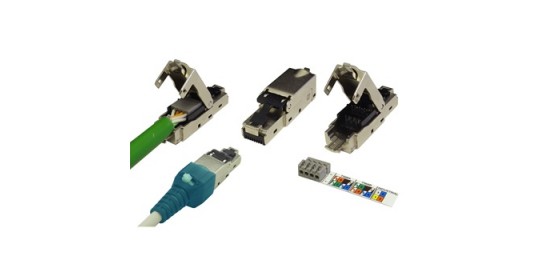

Field Termination Plug CAT6 STP 50mic Gold Plated Toolless.
