UTP patch panel is an enhanced performance patch panel used for transmission of high-speed data, digital and analogue voice and video RGB signals on LANs. Designed for 22-26 AWG solid conductors with Horizontal termination.
Features:
- UTP CAT6 1U patch panel with 12,16 and 24 ports.
- 19" mountable.
- Designed for 22-26 AWG solid conductors.
- Horizontal termination.
Specifications:
- IDC-PC UL94V-0.
- PCB-FR-4 1.60 mm (0.06") two impenetrable layers.
- Housing: ABS 94V-0.
- Contacts: 0.35 mm (0.014") phosphor bronze with 1.27-micron (50 micro inches) gold coating on contact area.
- Metal housing: 1.50 mm dense metal.
- Color pattern of conductors according to T568B & T568A.
- Numerical display of ports on the front side of the panel with supplementary space for assigning numbers.
- Color and numerical display of IDC modules at the panel rear.

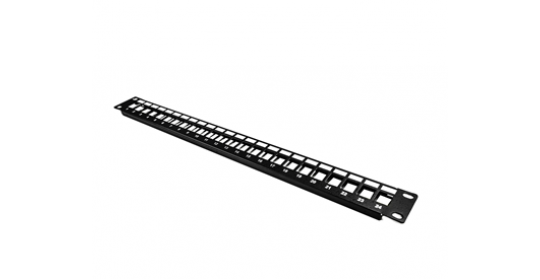

Patch Panel 24 Port Unloaded 1U For CAT6/6A Keystone -Webb.
