UTP Voice (CAT3) patch panels are 19inch rack mountable IDC/PCB moulded jack patch panels. All panels comply with the EIA/TIA standard for category 3 and are available in 50 port density.
Features:
CAT3 data and voice patch panel with 50 ports.
Angle: 90 degree.
Termination: LSA IDC.
Adherence to the requirements of
- TIA/EIA-568-A and TIA/EIA-568-B category 3.
- TIA/EIA TSB-40.
- Standard 11801 ISO/IEC generic cabling.
- Standard EN50173 CENELEC generic cabling.
Specifications:
- Patch panel rear is attached with cable managers for suitable cable management.
- High resistance capability.
- PCB - FR-4 1.60 mm (0.06") two impenetrable layers.
- Contacts: 0.45 mm (0.018") phosphor bronze with 3U to 50U diameter gold coating on contact area.
- Housing: ABS or PC.
- IDC - PC UL94V-0.
- Color and numerical display of IDC modules at the panel rear.
- Designed for 22-26 AWG compact conductors.

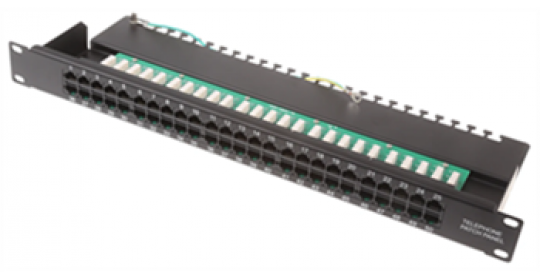

Patch Panel Data/Voice 1U 50Port 19" -Webb.
