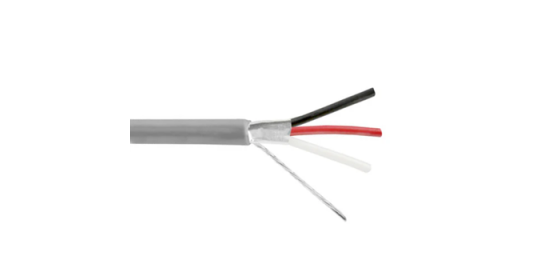

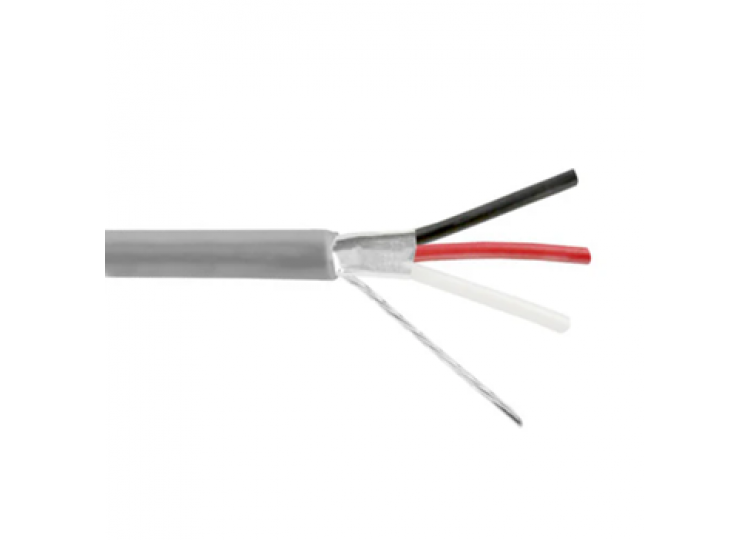

Webb signal/control cables are multi-conductor cables used in automation and instrumentation applications. They are designed to be flexible to enable hassle-free routing and cabling at any location. The inner structure consists of electrolytic stranded copper conductors insulated in a polypropylene compound. These are then wrapped in an aluminium screening to prevent electrical interference, and further covered with a PVC sheath.

Specifications:

• Conductor: stranded electrolytic copper.
• Insulation: polypropylene compound.
• Screen: Aluminium foiled and PET tape.
• Tinned copper drain wire (7 strands x 0.20mm).
• Outer sheath: PVC compound.
• Outer sheath colour: Grey.
• Operating voltage (U₀/U): 300 V.
• Bending radius: 10 x D.
• Operating temperature: -30 °C to +70 °C.

Stranding: in layers.

• 16AWG: 19 strands x 29AWG.
• 18AWG: 7 strands x 26AWG.
• 22AWG: 7 strands x 30AWG.
• 24AWG: 7 strands x 32AWG.

Conductor resistance (Ω/km) ±3:

• 16 AWG: 13.12
• 18 AWG: 21.32
• 22 AWG: 53.80
• 24 AWG: 80.00

Mutual capacitance (nF/km) ±10:

• 2x16 AWG - 190.3
• 3x16 AWG - 190.3
• 2x18 AWG - 173.89
• 3x18 AWG - 118.12
• 4x18 AWG - 88.587
• 6x18 AWG - 88.587
• 8x18 AWG - 88.587
• 4x22 AWG - 73.823
• 8x22 AWG - 131.24
• 4x24 AWG - 120.05
• 4x2x24 AWG - 120.08

Core colours:

• 2x16 AWG - Black, red
• 3x16 AWG - Black, red, white
• 2x18 AWG - Black, red
• 3x18 AWG - Black, red, white
• 4x18 AWG - Black, red, white, green
• 6x18 AWG - Black, red, white, green, brown, blue
• 8x18 AWG - Black, red, white, green, brown, blue, orange, yellow
• 4x22 AWG - Black, red, white, green
• 8x22 AWG - Black, red, white, green, brown, blue, orange, yellow
• 4x24 AWG- White, yellow, brown, green
• 4x2x24 AWG- Black x red, black x white, black x green, black x blue
