Webb signal/control cables are multi-conductor cables used in automation and instrumentation applications. They are designed to be flexible to enable hassle-free routing and cabling at any location. The inner structure consists of electrolytic stranded copper conductors insulated in a polypropylene compound. These are then wrapped in an aluminium screening to prevent electrical interference, and further covered with a PVC sheath.
Specifications:
- Conductor: stranded electrolytic copper.
- Insulation: polypropylene compound.
- Screen: Aluminium foiled and PET tape.
- Tinned copper drain wire (7 strands x 0.20mm).
- Outer sheath: PVC compound.
- Outer sheath colour: Grey.
- Operating voltage (U₀/U): 300 V.
- Bending radius: 10 x D.
- Operating temperature: -30 °C to +70 °C.
Stranding: in layers.
- 16AWG: 19 strands x 29AWG.
- 18AWG: 7 strands x 26AWG.
- 22AWG: 7 strands x 30AWG.
- 24AWG: 7 strands x 32AWG.
Conductor resistance (Ω/km) ±3:
- 16 AWG: 13.12
- 18 AWG: 21.32
- 22 AWG: 53.80
- 24 AWG: 80.00
Mutual capacitance (nF/km) ±10:
- 2x16 AWG - 190.3
- 3x16 AWG - 190.3
- 2x18 AWG - 173.89
- 3x18 AWG - 118.12
- 4x18 AWG - 88.587
- 6x18 AWG - 88.587
- 8x18 AWG - 88.587
- 4x22 AWG - 73.823
- 8x22 AWG - 131.24
- 4x24 AWG - 120.05
- 4x2x24 AWG - 120.08
Core colours:
- 2x16 AWG - Black, red
- 3x16 AWG - Black, red, white
- 2x18 AWG - Black, red
- 3x18 AWG - Black, red, white
- 4x18 AWG - Black, red, white, green
- 6x18 AWG - Black, red, white, green, brown, blue
- 8x18 AWG - Black, red, white, green, brown, blue, orange, yellow
- 4x22 AWG - Black, red, white, green
- 8x22 AWG - Black, red, white, green, brown, blue, orange, yellow
- 4x24 AWG- White, yellow, brown, green
- 4x2x24 AWG- Black x red, black x white, black x green, black x blue

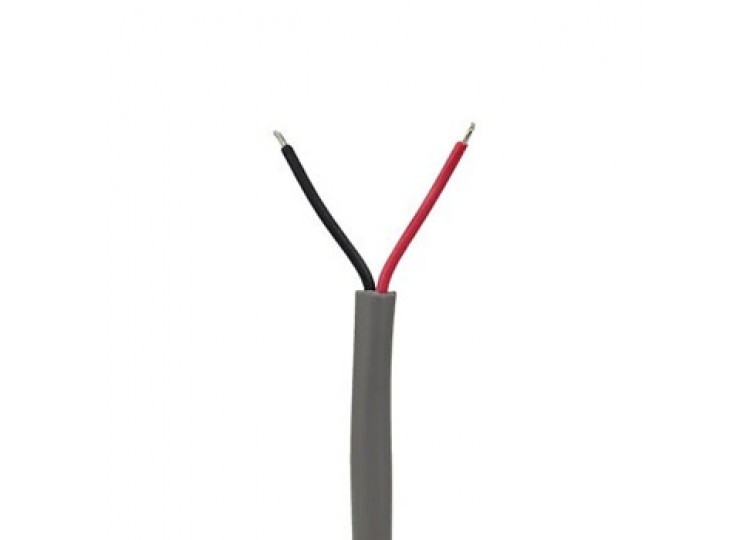

2C Unshielded 22 AWG Stranded (07x30), PVC 305m/Roll.
- Brand: WEBB Categories Copper Products
- Product Code: 912.125.00026
- MPN: T.04.CC.02.US.22.T-07X30.P.G
