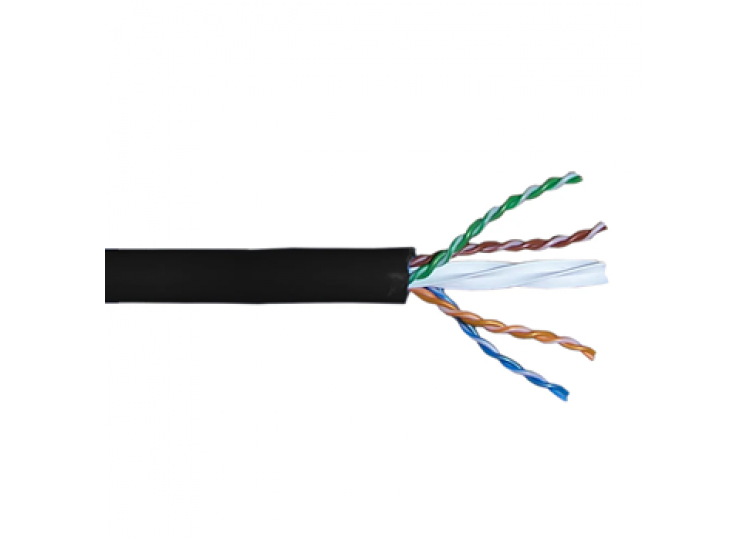

WEBB CAT6A unscreened UTP cable is 23 or 24 American wire gauge (AWG) ideally used for network and telecommunication applications. WEBB cables are cost effective, reliable provides high speed transmission performance.
Features:
- Category:CAT6A U/UTP 4Pairs
- Reference standard: ISO/IEC11801, TIA-568-C.2
- Conductor:solid-bare copper material
- Conductor thickness available in 23AWG or 24AWG
- Available in LSZH, PVC, PE sheaths
- Available in all standard colors
- Surface printing
- Color: black or white
- Print error & space: ≤±0.5%/1m
- Letter height: 3.0 ±0.3mm
- Packing: wooden tray & carton, dimension according to the requirement
- Packing length:305±1.5m
- Ripcord:yes
- Drain wire: no
Core color:
- A.White-blue/blue
- B.White-orange/orange
- C.White-green/green
- D.White- brown/brown
Electrical characteristics (20℃):
- 1.0-250.0MHz Impedance(Ω) 100 ±15
- 250.0-500.0MHz impedance (Ω) 100 ±22
- 1.0-250.0MHz Delay skew (ns/100m) ≤45
- DC Resistance(Ω/100m) max 9.38
- DC Conductor resistance unbalance(%) max 5.0
- Nominal velocity of propagation: 69%

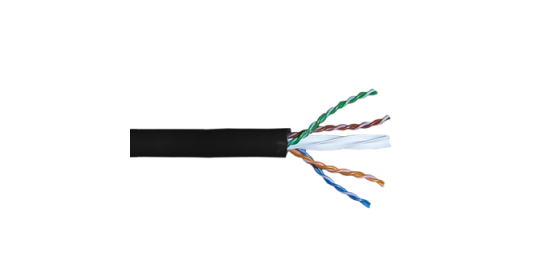

Cable External 4Pr UTP Cat6A 23AWG 0.56mm PE 500m/RL-Black.
