WEBB CAT6 unscreened UTP cables are 23 or 24 American wire gauge (AWG), ideally used for network and telecommunication applications. WEBB cables are cost effective, reliable and provide high speed transmission performance.
Features:
- Category: CAT6 U/UTP 4Pairs.
- Reference standard: ISO/IEC11801, TIA-568-C.2.
- Conductor: Solid-bare copper material.
- Available in LSZH, PVC, PE sheaths.
- Available in all standard colors.
- Conductor thickness available in 23AWG or 24AWG.
- Packing: wooden tray & carton, dimension according to the requirement.
- Ripcord: yes Drain wire: no.
Surface printing.
- Color: black or white.
- Print error & space: ≤±0.5%/1m.
- Letter height: 3.0 ±0.3mm.
Core color.
- A. Blue, white-blue.
- B. Orange, white-orange.
- C. Green, white-green.
- D.Brown, white-brown.
Electrical Characteristics (20℃):
- 1.0-250.0MHz impedance (Ω) 100 ±15.
- 1.0-250.0MHz delay skew (ns/100m) ≤45.
- DC resistance (Ω/100m) max 9.38.
- DC conductor resistance unbalance (%) max 5.0 F.

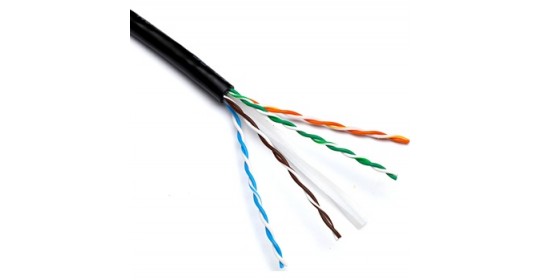

Cable External 4Pr UTP Cat6 23AWG 0.55mm PE 500m/RL-Black.
