Wall Mounting is an excellent option for space management. These cabinets are cost-effective and an ideal option where the space is constrained. We have different models of wall mount cabinets to cover a diverse array of project requirements providing safety and accessibility for your network instruments by keeping your place of business/conference/meeting rooms aesthetically appealing.
Specifications:
- Front framed glass door with dual section lock.
- Removable side panels with plastic fasteners and lock
system with an additional charge.
- Rear 100mm section with lock.
- RU markings on front and rear mounting rails.
- Top and bottom cable entries.
- Hinge can be installed on either side to switch door
opening.
- Earthing bolt.
- Loading capacity: 60KG.
- Materials:SPCC steel.
- Thickness: mounting rails- 1.5mm; sheet metal 1.0-1.2mm.
- Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491;
PART1,DIN41494; PART7, GB/T3047.2-92.
- CE, RoHS test certified.
- Surface finish: degrease, acid pickling, rust prevention
and parkerizing, pure water cleaning, static electricity and plastic painting.
- IP degree: IP-20.

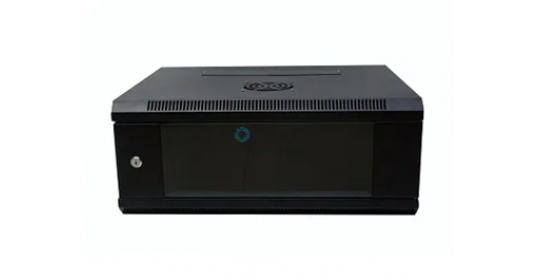

Cabinet 4U W600 D450 Single Section W/ 1XFAN- RAL 9005.
- Brand: WEBB Categories Network Rack
- Product Code: 912.095.00011
- MPN: C.02.W.04.6045.B.PG.SS.SPO+1F+
