Server cabinets are designed to store and safeguard the primary active components in a data networking system. The design considerations include the functionality to provide substantial flow of air, keeping the networking units aesthetically arranged with excellent cable management options. Our server cabinets provide adequate and appropriate cycling of air and cable management which aids the servers to function around the clock.
Specifications:
- Front perforated or glass door with handle lock.
- Rear door with rod handle lock.
- Removable solid metal side panels with an optional lock system.
- Enhanced 130 degrees operation angle hinge.
- Top and bottom cable entry; the size can be customized.
- Top fan tray has 2 or 4 fans for cooling.
- Swiveling castor wheels and adjustable feet.
- 20 sets of extra M6 cage nuts and screws.
- RU marked 2.0mm mounting rails.
- Flat packed or assembled delivery options.
- Maximum static bearing capacity of up to 800kg on cabinet feet; Cabinet can be customized for higher loading capacity.
- Protection: IP20.
- Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, ETSI.
- CE, RoHS test certified.
- Surface finish: degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electric powder coating.
- Color: RAL9005(black), RAL7035(grey), additional colors can be customized with MOQ.

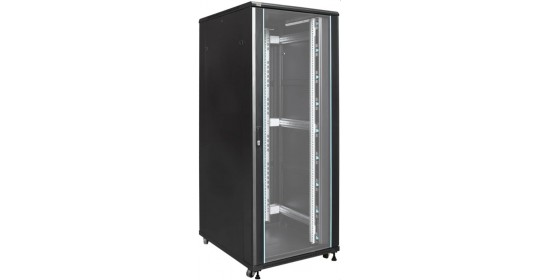

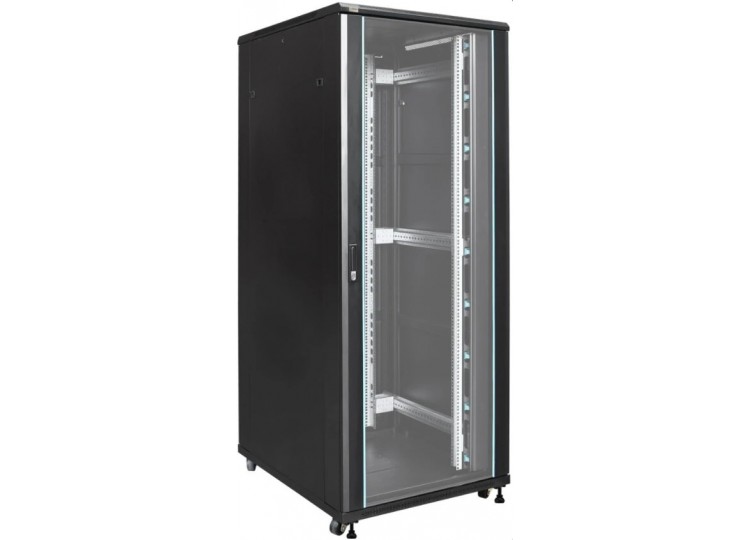

Cabinet Server 42U W800D1000,W/4Fan+2VCM, SP W/o Door -9005.
- Brand: WEBB
- Product Code: 912.095.00043
- MPN: C.02.F.42.8010.B.XX.XX.SPL+4FSX+2V
