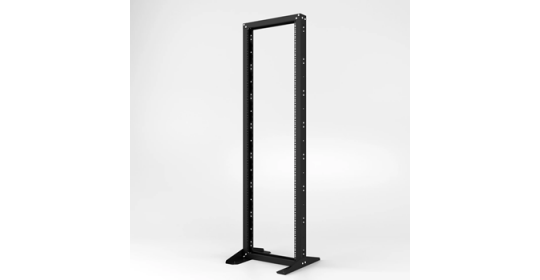

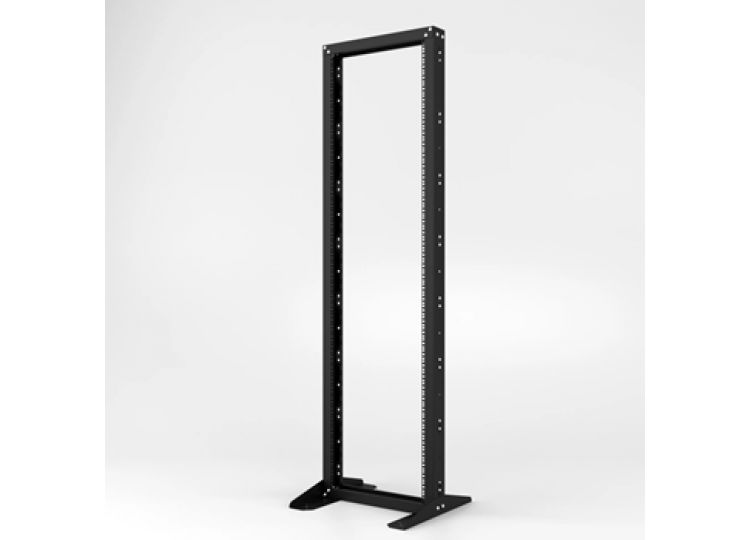

Webb open frame racks/lab racks provides users with a versatile, customizable solution engineered to meet a diverse set of rack-mounting components. This rack features insertion points that work perfectly for the installation of data management equipment.

The open frame racks/lab racks are durable, of sturdy construction, and facilitates the seamless integration of cable management systems while being easy to assemble, making it ideal for all data center requirements.

Features:

• Lab racks are available with two posts and four posts.
• Available in 18U, 22U, 27U, 32U, 37U, 42U, 45U, 47U, 52U heights; the size can be customized.
• Rack widths are available in 600mm and custom sizes.
• Rack base lengths are available in 350mm and 600mm.
• Available in cut-out and standard frame types.
• Cut-out frames are highly efficient for cable management
• Available with castor wheels or stand-alone options.
• Material: 1.5 to 2.0 mm SPCC cold rolled steel or EG steel.
• Provision to bolt racks to the floor.
• Flat packed or assembled delivery options.
• Compliance with CE, ISO, ROHS, SGS standards.
• Compliance with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, ETSI standards.
• Surface finish: degrease, acid pickling, rust prevention powder coating.
• Available in black(RAL9005) and grey(RAL 7035) colours; Custom colours are available subject to MOQ.

Maximum static load-bearing capacity:

• Two post with castors: 200kg; with out castors: 300kg.
• Four post with castors: 350kg; with out castors: 450kg.
