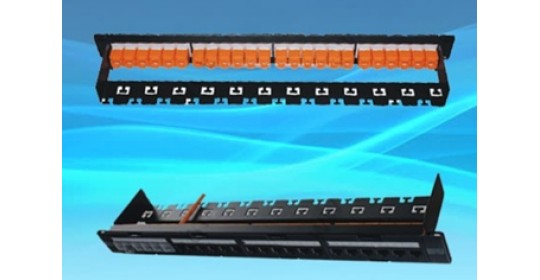

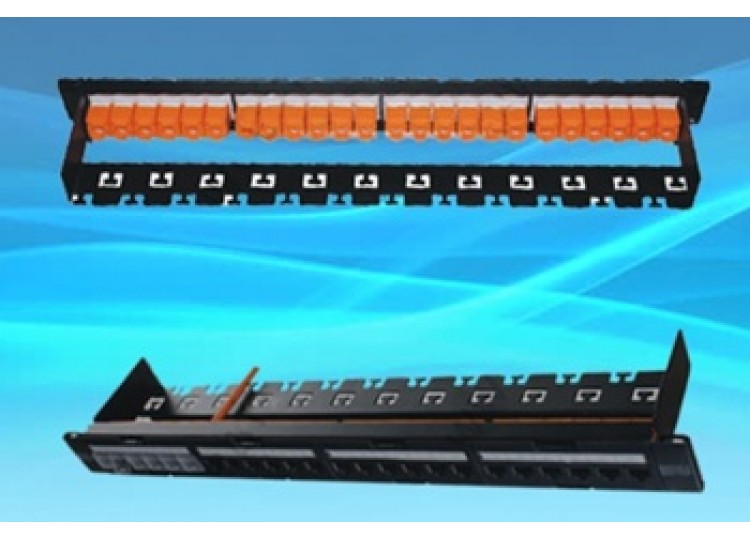

  • Patch Panel 24 Port 1U CAT6A Unloaded – Webb.

Description:

  • 1U CAT6A 24 ports UTP patch panel has shutter for 6 CAT6A modules.


Features:

  • 6 CAT6A modules in 4 blocks for 24 ports UTP 1U patch panel with shutter.
  • 19” mountable.
  • Meets/exceeds the existing T568A and T568B standards.
  • IDC: Tool-less category (CAT6A UTP keystone & slender design).


Specifications:

  • Designed for 22-26 AWG solid conductors.
  • IDC contact material: phosphor bronze with tin-coating over nickel.
  • Contact material: phosphor bronze with gold-coating over nickel.
  • Panel frame: black or ivory electro static powder-coated steel.
  • Housing material: ABS or PC; UL94-V0 or UL94-V2.


Electrical Characteristics:

  • Insulation: 500 mohm.
  • Dielectric voltage resistance: 1000 V AC RMS, 60Hz/1minute.

Write a review

Note: HTML is not translated!
Captcha

Patch Panel 24 Port 1U CAT6A Unloaded – Webb.

0 reviews / Write a review

  • Brand: WEBB
    • Categories Copper Products
  • Product Code: 912.275.00047
    • MPN: C.08.CPP.CA.24.UTP.S.B.E
