Southwire – US – G50032-44A – Cable – Control

Description
Reviews (0)

Specifications:

Cable Type	FPLP
Cond. Size	16 AWG
Conductor Number	2
Cond. Type	Cu
Cond. Strands	Solid
Diameter Over Conductor (in)	0.050	inch
Insulation Thickness (mils)	10	mils
Jacket Thickness (mils)	15	mils
Approx. OD (in)	0.164	inch
Copper Weight (lbs/1000')	15	lbs/1000'
Approx. Weight (lbs/1000')	22	lbs/1000'
DC Resistance at 25C (ohms/1000')	4.181	ohms/1000'
AC Resistance at 75C (ohms/1000')	5.037	ohms/1000'
Inductive Reactance (ohms/1000')	0.033	ohms/1000'
Min. Bend Radius (in)	0.6	inch
Allowable Ampacity Raceway 75C	-
Allowable Ampacity Raceway 90C	18

Application and features:

Fire protective signaling circuits. Also for smoke detectors, voice communications, audio control and initiating circuits. Article 760 of the NEC. For use in plenum spaces. Minimum Temperature 0ºC , Maximum Temperature 75ºC.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating

Captcha

Enter the code in the box below

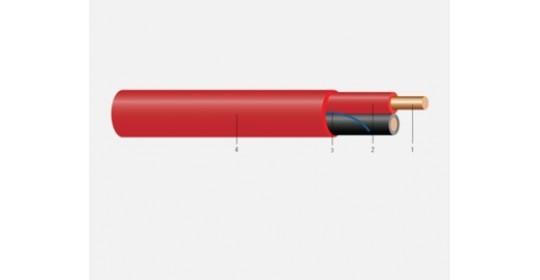

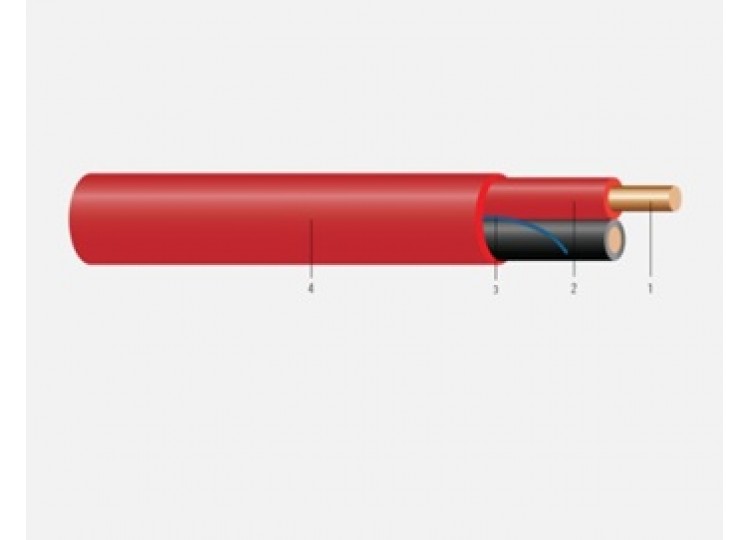

Cable 2C,16AWG Solid Bare CU2/C TFP75C 300V Plenum -305m/Rl.

0 reviews / Write a review

Brand: SOUTHWIRE - USA

Instrumentation / Control

Product Code: 798.125.00039
MPN: G50032-44A
