The

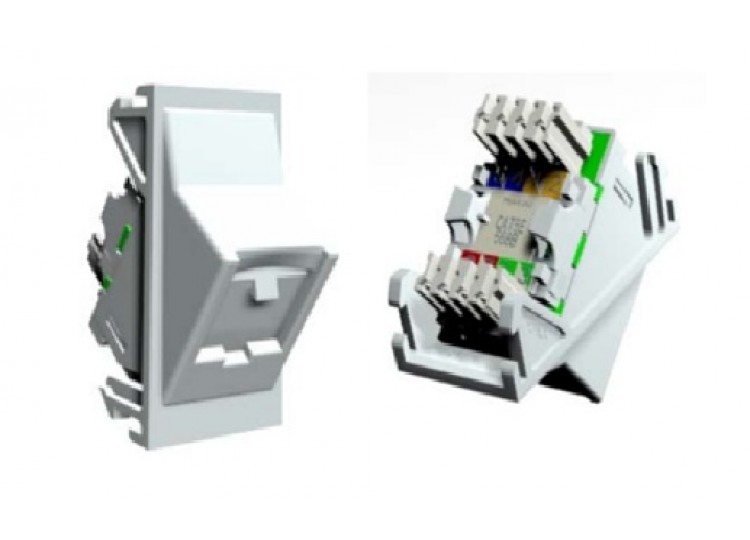

Pressac Cat6 Eurostyle RJ45 Angled Module is designed to complement the
existing range of Eurostyle modules and faceplates. Compliant with
TIA/EIA-568-B.2-1 specifications, its main advantage is the patchcord enters
the socket aperture at a 35 degree angle, which reduces snagging, and
inadvertent damage.
Features
& Benefits:
- 35° Angled entry.
- 568B colour coding.
- 110/LSA compatible IDC connectors.
- Shuttered access to protect from dustingress.
- V0
flame retardant PVC.
- EIA/TIA 568B-B.2-1 tested.
Additional Information:
Often used in faceplates that are mounted in trunking close to desks, the Cat6 Eurostyle Angled Module can be clipped into either standard or bevelled Eurostyle faceplates. A flat surface adjacent to the socket entry is provided for port identification that could be achieved by the application of a printed self adhesive label.

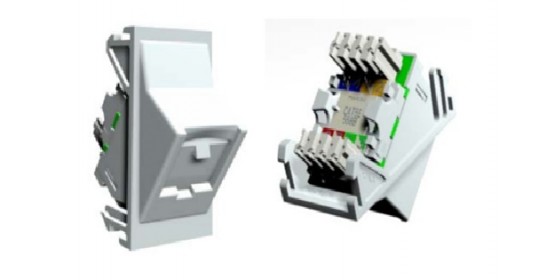

Module Euro Angled RJ45 CAT6 High Proof.
