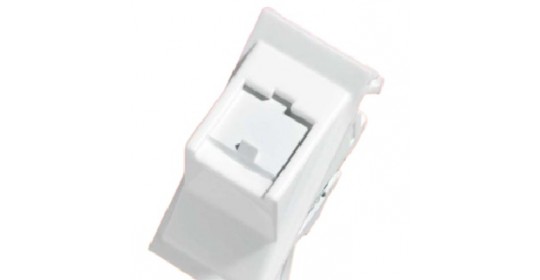

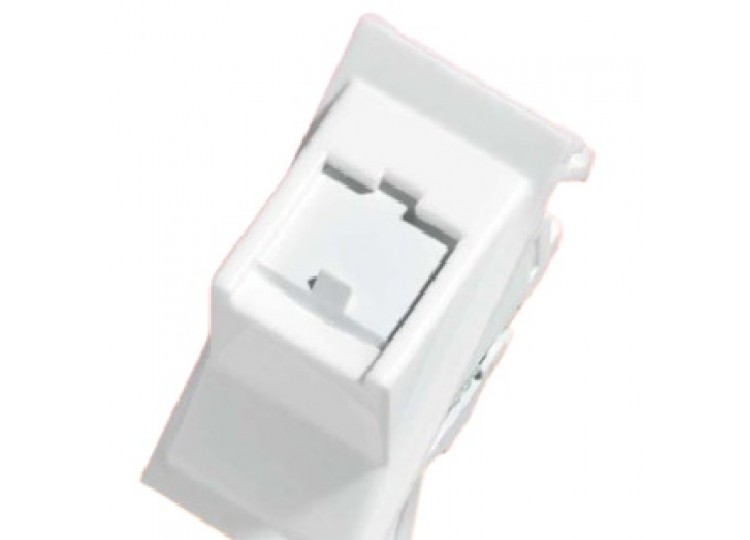

Product Overview:

The Cat5e RJ45 Angled Module offers exceptional high performance combined with ease of use. Designed to TIA/EIA-568-B.2-1 specifications with the added advantage of large amounts of headroom.

Features & Benefits:

• 35° Module.
• 568B colour coding.
• 110/LSA compatible IDC connectors.
• Shuttered access to protect from dustingress.
• V0 flame retardant ABS.
• Ideal for DADO environments.
• Accepts Fluke PM06 module.

Description:

• Euro Style Angled Module.

Additional Information:

The Euro Style angled module is suited to uses where patching is required to flow in a vertical manor or when placed close to a desk or work bench. With a highly aesthetic appearance and designed for ease of use, this module offer an alternative solution to problems with patching to the desk. The curved labeling facility is designed to accept industry standard self adhesive labels. The module will fit into the standard Presslink flush face plate or the Zeta bevelled range. The characteristic of the powersum ACR and the return loss guarantee superb performance from Ethernet through to gigabit Ethernet when used in conjunction with the Press Link UTP patch panels, cable and patch cords.

Dimensions (mm):

• 50H x 25W x 44.6D.
