Product
details:
- Breakout construction.
- Resistant to abrasion
and cutting.
- For harsh environment.
- Increased flexibility.
- Operation in a wide
temperature range.
- For temporary
deployment.
Features:
|
Fibre
Type |
G.657.A1,
G.657.A2, G.657.B3, OM1, OM2, OM3, OM4, OM5 |
|
Fibre
colour |
EIA/TIA-598A |
|
Buffer
material |
Polyamide
12 (Nylon) |
|
Buffer
colour |
Natural
transparent |
|
Subunit
material |
Flame-retardant
Thermoplastic Polyurethane |
|
Subunit
colour |
EIA/TIA-598A |
|
Central
filler |
Thermoplastic
Polyurethane (TPU) coated Aramid yarn |
|
Strength
members |
Water-swellable
Aramid yarns |
|
Peripheral
strength members |
Water-swellable
Aramid yarns |
|
Outer
jacket material |
UV
resistant , Flame-retardant (V-0, UL94) Thermoplastic Polyurethane |
Specifications:
|
Number
of fibres |
4 |
|
|
Number
of fibres in subunit |
1 |
|
|
Subunit
count (layers) |
4 |
|
|
Subunit
diameter (mm) |
2.0 |
|
|
Buffer
diameter (mm) |
0.9 |
|
|
Nominal
outer diameter (mm) |
7.5 |
|
|
Outer
jacket thickness (mm) |
1.1 |
|
|
Calc.
cable weight (kg/km) |
47 |
|
|
Short-term
tensile strength (N) |
2000 |
IEC
60794-1-101 |
|
Long-term
tensile strength (N) |
640 |
IEC
60794-1-101 |
|
Short-term
crush resistance (N/100 mm) |
6000 |
IEC
60794-1-103 |
|
Max.
impact loading (Nm) |
360
impacts, 1.0 kg load |
IEC
60794-1-104 |
|
200
impacts, 1.5 kg load |
IEC
60794-1-104 |
|
|
60
impacts, 2.0 kg load |
IEC
60794-1-104 |
|
|
Abrasion
resistance 10 000 cycles (N) |
10 |
IEC
60794-1-102 |
|
Min.
bend radius not load (mm) |
Short
term 65 |
IEC
60794-1-111 |
|
Long
term 125 |
IEC
60794-1-111 |
|
|
Operating
temperature range (°C) |
-55
to +85 |
IEC
60794-1-201 |
|
Storage
temperature range (°C) |
-65
to +85 |
IEC
60794-1-201 |
|
Installation
temperature range (°C) |
-40
to +60 |
IEC
60794-1-201 |
|
Water
tightness (1 m / 24 hrs.) |
No
leakage |
IEC
60794-1-205 |
|
Class
of fire reaction |
Fca |
EN
50575, EN 13501-6 |
Application:
- For military data
communication.
- Ideal for industrial
applications.

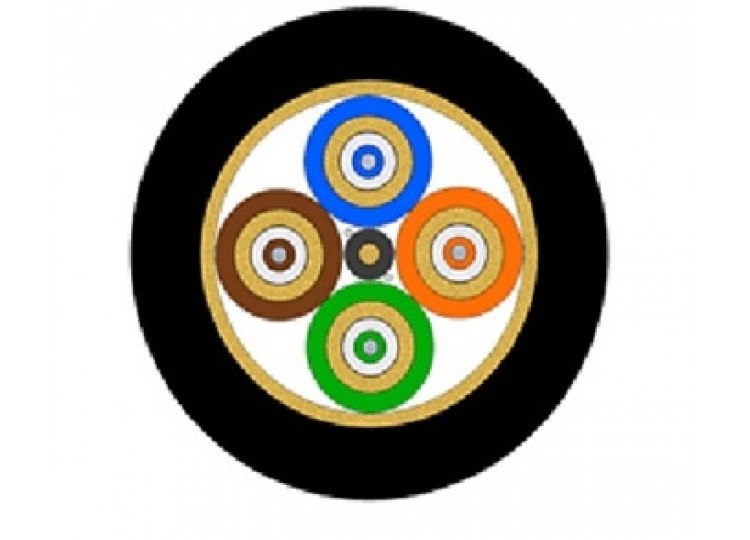

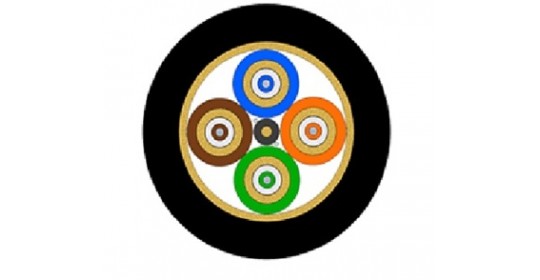

Breakout Tactical Cable.
