Product
details:
- Resistant to abrasion
and cutting.
- For harsh environment.
- Excellent crush
resistance.
- High flexibility.
- For military data
communication.
- Operation in a wide
temperature range.
- For temporary deployment.
Features:
Rugged, flexible cable engineered for harsh environments. It resists abrasion and cutting, offers excellent crush resistance, operates across a wide temperature range, and is ideal for military data communication and temporary deployments.
Specifications:
|
Fibre
Type |
G.657.A1,
G.657.A2, G.657.B3, OM1, OM2, OM3, OM4, OM5 |
|
Fibre
colour |
Blue,
Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
|
Buffer
diameter |
0.9
mm |
|
Buffer
material |
Polyamide
12 |
|
Buffers
colour |
Natural-transparent |
|
Peripheral
strength members |
Water-swellable
Aramid yarns |
|
Outer
jacket material |
UV
resistant, Flame-retardant (V-0, UL94) Thermoplastic Polyurethane* |
|
Outer
jacket thickness |
1.1 mm |
|
Outer
jacket colour |
Black |
*non-toxic chemical protection against rodents and termites possible on request.
|
Number
of Fibers |
Cable
Code (Ordering Code) |
|
2 |
OPK-U-DSTTAC-2(2x0.9)N9AAU-xx-BK |
|
4 |
OPK-U-DSTTAC-4(4x0.9)N9AAU-xx-BK |
|
6 |
OPK-U-DSTTAC-6(6x0.9)N9AAU-xx-BK |
|
8 |
OPK-U-DSTTAC-8(8x0.9)N9AAU-xx-BK |
|
12 |
OPK-U-DSTTAC-12(12x0.9)N9AAU-xx-BK |
xx–
fibre type (see Cable code datasheet)

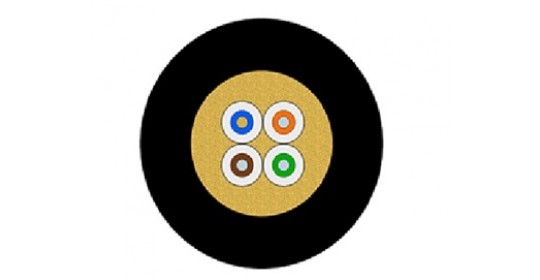

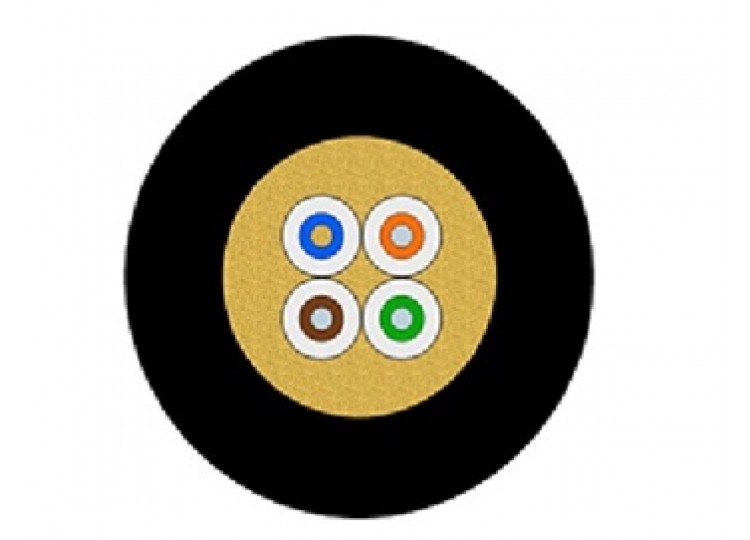

Ruggedized Mobile Cable.
