Product
details:

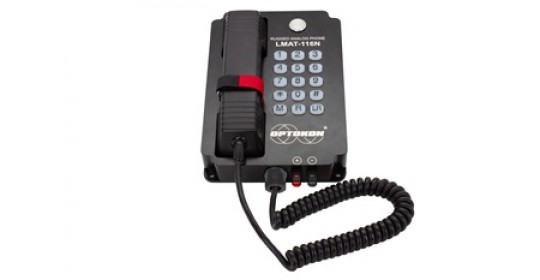

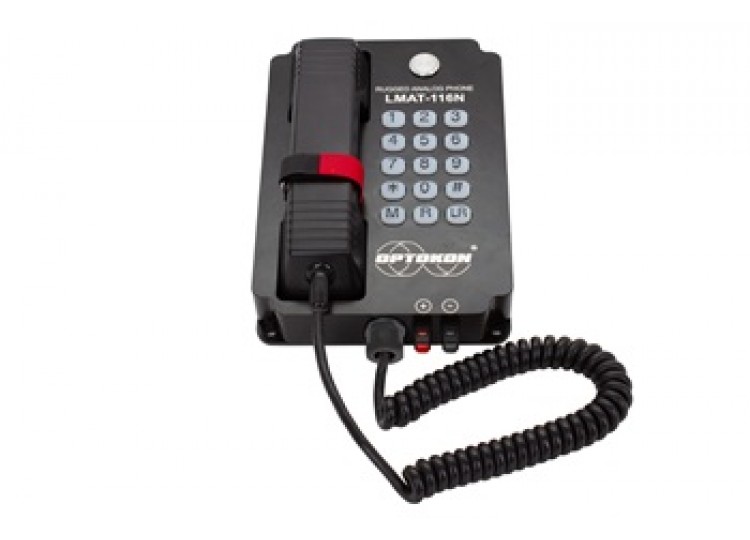

OPTOKON LMAT-116N is a rugged analog phone specially designed for use in harsh environmental conditions. The phone offers an easy-to-use interface and provides a traditional telephony user experience.
Features:
Manufactured
in accordance with military standards and fulfill all of its functions
completely under vibration and shock conditions
• Designed for the harsh environment of ships and military
use with high vibration and shock effect.
• Guarantees continuous working under humidity, salty and extreme
temperature conditions in ships and land forces.
• Back light keypad.
• CB – central battery operation.
• DTMF – Dual-tone multi-frequency signaling.
• Two wires telephone line connection:
- RJ11 socket.
- clamps for bare wire connection.
Specifications:
|
Material |
Aluminium
alloy |
|
Dimensions |
240
x 170 x 40 mm (box), 240 x 170 x 70 mm (with handset) |
|
Weight |
3
kg |
|
Color |
black |
|
Operating
temperature Storage
temperature |
-40
to +65 °C, -40
to +75 °C |
|
Mechanical |
Waterproof
and dust protection: IP65 |
|
Power
Voltage |
24
V DC to 65 V DC |
|
Power
Current |
20
mA DC to 100 mA DC |
|
Ringer
Voltage |
48
V AC to 90 V AC (calling frequency 21...54 Hz) |
|
Ringing
Volume |
Shrill
warble tone 80 dBA @ 1 metre typical |
|
Dialing
method |
DTMF
mode in accordance with ITU-T recommendation Q.23 |
|
Lightning
/ Transients |
Protection
to ITU-T k.21 enhanced levels |
LMAT-116N Ruggedized phones.
