Product details:

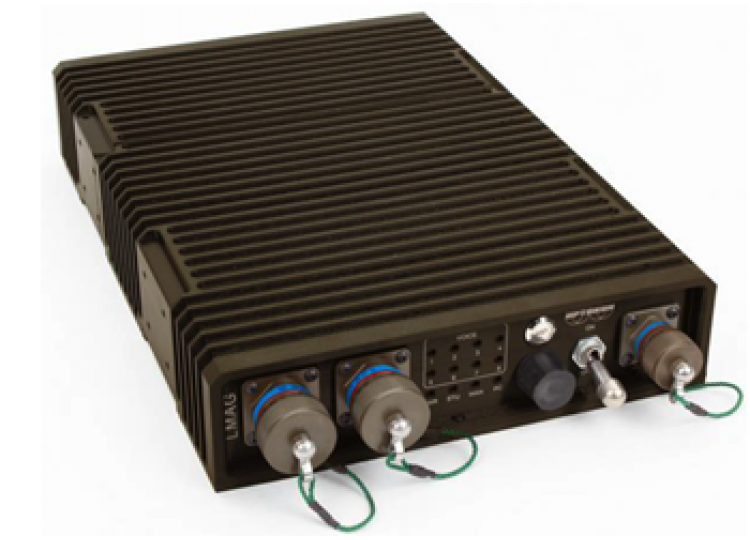

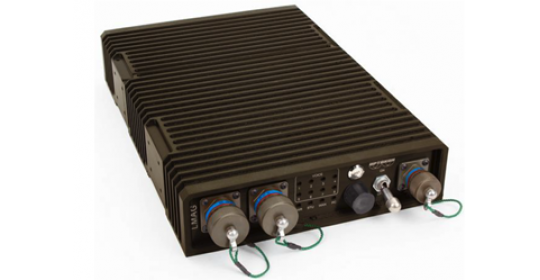

LMAG 8-port VoIP gateway.

The LMAG series introduces the Voice over IP gateway housed in a robust metal box. It is compact device designed for low-port-count applications, specially for tactical network telephony operating in harsh environmental conditions. Equipped with 8 FXS ports, plus Gigabit WAN and PC ports, they enable seamless connectivity between analog devices (phones, fax, POS) and IP/PSTN networks. Running on embedded Linux, they support advanced features such as call forwarding, transfer, 3-way conferencing, caller ID, PSTN failover, and more delivering a reliable, cost-effective, all-in-one communication solution.

Features:

• Rugged design for use in harsh environments.
• IMS/SIP/MGCP protocols.
• 8 of FXS ports, 8 concurent calls.
• TLS/SRTP, L2TP/OpenVPN client.
• 500 routing and number-manipulation rules.
• Configurable SIP ports and IP-address whitelist.
• Fax with max rate of 33,600 bps by T.38 or G.711.
• Polarity-reversal/busy-tone detection.
• High availability & PSTN failover.
• Auto provisioning.
• Management with or third-party Element Management Systems (TR-069, SNMP).
• Interoperability with SIP servers, Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), Huawei IMS, and Asterisk/Elastix.
• Class I lightning protection.
