Product details:

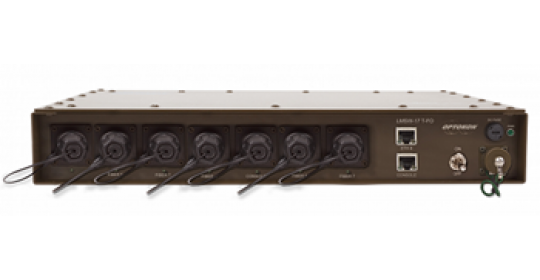

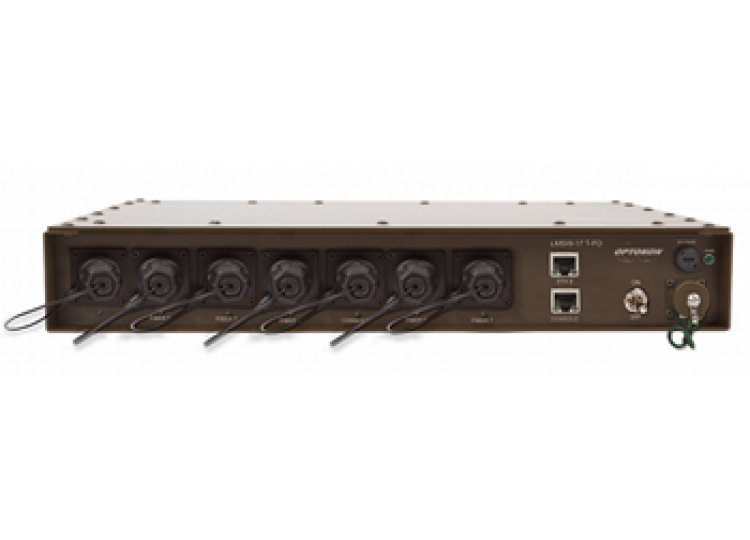

The OPTOKON^® LMSW-17T-FO ruggedized switch extends switching capabilities to mobile and embedded networks that operate in extreme environments. The flexible, compact form factor of the switch, provides highly secure data, voice, and video communications to stationary and mobile network nodes, making it ideal for use in harsh environmental conditions. Fiber optic ports are terminated with HMA “Expanded Beam” connectors, which allows interconnection of the nodes of tactical network by the help of cables with optical fibers. The used “Expanded Beam” technology preservers all advantages of signals transmission through the optical lines in field harsh environmental conditions.

The switch supports a variety of management functions, including Web UI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session
The switch is able to fit all the common 24 V DC power systems. The switch operates in wide operating temperature range -40 to +70 °C. The switch can operate as standalone device or in addition the 19” brackets allow switch installation into 19” rack.

Features:

• Robust compact design resistant to harsh environmental conditions and rough handling.
• L2/L3 functionality.
• 1G uplinks, 1G downlinks.
• 7x LAN FO in HMA-J.
• Standards IEEE 802.1p, IEEE 802.1Q, 802.3az.
• 20 – 40 V DC power supply.
