Product details:

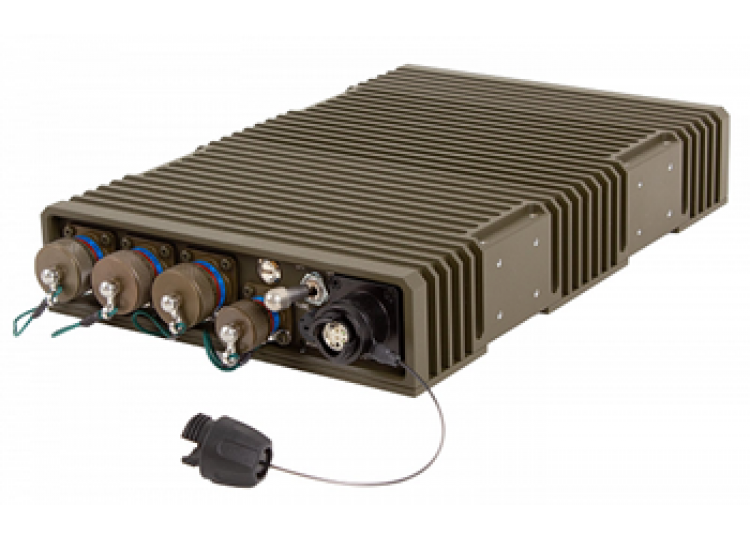

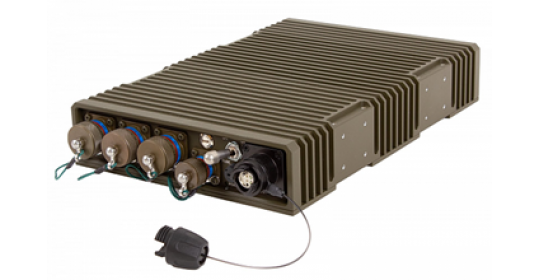

The OPTOKON^® LMSW-82T ruggedized switch extends switching capabilities to mobile and embedded networks that operate in extreme environments. The flexible, compact form factor of the switch provides highly secure data, voice, and video communications to stationary and mobile network nodes, making it ideal for use in harsh environmental conditions. 1G fiber optic ports are terminated with HMA “Expanded Beam” connectors, which allows interconnection of the nodes of tactical network by the help of cables with optical fibers. The used “Expanded Beam” technology preservers all advantages of signals transmission through the optical lines in field harsh environmental conditions.

The switch supports a variety of management functions, including STP/RSTP/MSTP and ITU-T G.8032 Ring<50 ms recovery time, advanced PoE management functions such as PoE device auto-checking and auto reset, layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostic and Green Ethernet.
The switch is able to fit all the common 24 V DC power systems. The switch operates in wide operating temperature range -32 to +75 °C. The switch can operate as standalone device or in addition the 19” brackets allow switch installation into 19” rack. Two switches can be connected on the side and mounted in a 19 "rack.

Features:

• Robust compact design resistant to harsh environmental conditions and rough handling.
• L2 functionality.
• 1G uplinks, 1G downlinks.
• 2x WAN FO in HMA-J or copper D38999 connector.
• 8x LAN with PoE, D38999 multi-pin connectors.
• PoE on all LAN ports available.
• Standards IEEE 802.1p, IEEE 802.1Q, 802.3az, 802.3af and 802.3at.
• 20 – 40 V DC power supply.
