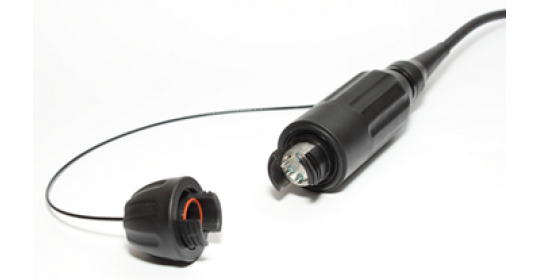

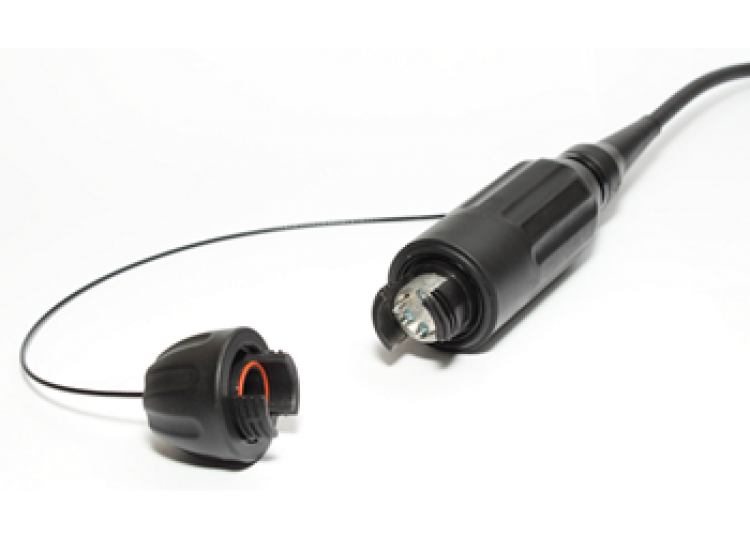

The OPTOKON HMA-S connector series, a large size „Expanded Beam“ connector is designed for connection of the nodes of tactical network by the help of cables with optical fibers. The used expanded beam technology preservers all advantages of signals transmission through the optical lines in field harsh environmental conditions. Additionally to military optical networks the HMA-S is suited for a vast array of applications, like heavy industry connections, petrochemical application, broadcasting temporary optical lines.

The innovative designs ensure its ability for deployment in the toughest environments where high performance and total reliability are critical. Benefiting from expanded beam technology the precision optical alignment system creates immunity from water, mud, dust oil and other contaminants.

The HMA-S Hermaphroditic coupling eliminates the need for adaptors and male and female mating halves. Hermaphroditic housings allow for rapid deployment, creating low loss Single mode and Multimode daisy chained links in a variety of planforms ranging from simplex fiber to a four fibers. The OPTOKON HMA-S is ideally suited for environmental extremities where low maintenance and quick repairability is necessary.

Features:

Advanced expanded beam technology.
Hermaphroditic interconnection.
1 to 8 fiber channels Single mode or Multimode.
Low insertion loss / high return loss.
Hybrid electrical & fiber channel options available.
Rugged field repairable connector design.

Benefits:

Best optical performance available.
No adaptors necessary.
Combined fiber and electrical channels.
Inexpensive, low downtime field repair.
Easy clean, no special tools.

Specifications:

Insertion Loss	50/125 @ 850/1300 nm:1 to 4 channels: 1.0 dB max; 6 & 8 channels: 1.5 dB max 9/125 @ 1310/1550 nm:1 to 4 channels: 1.5 dB max; 6 & 8 channels: 2.0 dB max
Return Loss	9/125 @ 1310/1550 nm > 32 dB (typ. 40 dB), >20 dB multimode
Electrical power contacts	Size 20 & size 16 MIL-C-39029. Contact resistance <4 mΩ. Operating voltage 1000 VAC.Operating current 5 A (short term 15 A)
Electrical: Test Voltage	Between contacts and contact / housing: 3000V / 50Hz, 1 minute EN61984
Durability	3000 Matings minimum
Operating temperature	-40 to +85 °C
Storage temperature	-55 to +85 °C
Water immersion	up to 15 m depth
Vibration Sinusoidal	10-500 Hz, 0.75 mm amplitude @ 10 g acceleration
Free fall resistance	500 falls from 1.2 m height
Bump resistance	4000 bumps @ 40 g acceleration
Tensile Strength	Tensile of 1500 N, cable dependent
Crush resistance	6.7 kN
Corrosion resistance	500 Hours Salt Spray
Cable retention	1500 N (cable dependant)
Cable Variations	Compatible with tactical cable: Plug < 6 mm o/d , Bulkhead < 3 mm o/dOther cable sizes available on request
Color	black anodizedgreen RAL 6014¹
